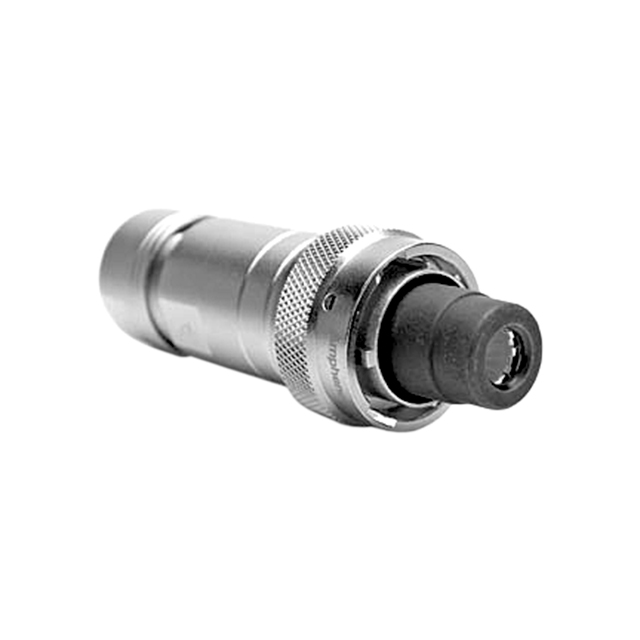

RTHP6161SNH35S2
ActiveAmphenol Sine Systems Corp
CONN PLUG FMALE 1P SILVER CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RTHP6161SNH35S2
ActiveAmphenol Sine Systems Corp
CONN PLUG FMALE 1P SILVER CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTHP6161SNH35S2 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 130 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | 16-1 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 630 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 58.75 | |
Description
General part information
RTHP61 Series
1 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
No documents available
