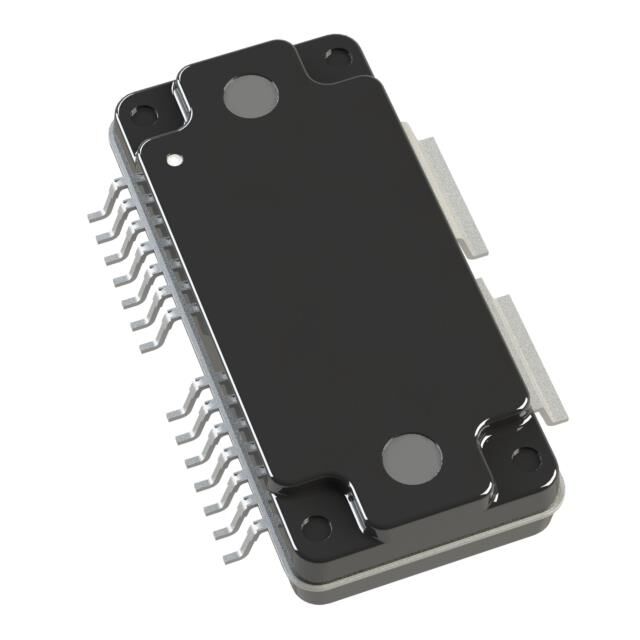

BLM9D2327S-50PBG

Active

Ampleon USA Inc.

RF FET

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF FET

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Mounting Type	Supplier Device Package	Gain	Frequency [Min]	Frequency [Max]	Package / Case
Ampleon USA Inc. BLM9H0610S-60PGY	48 VDC	Surface Mount	OMP-780-16G-1	35.5 dB	600 MHz	1 GHz	OMP-780-16G-1
Ampleon USA Inc. BLM9D2327S-50PB	28 V		OMP-780-16F-1	27.5 dB	2.3 GHz	2.7 GHz	OMP-780-16F-1
Ampleon USA Inc. BLM9D0910-05AMZ		Surface Mount	20-LGA (7x7)	18 dBi	859 MHz	960 MHz	20-VLGA Exposed Pad
Ampleon USA Inc. BLM9D1819-08AMZ	28 V	Surface Mount	20-LGA (7x7)	27.7 dB	1.805 GHz	1.88 GHz	20-VLGA Exposed Pad
Ampleon USA Inc. BLM9D2527-09AMZ
Ampleon USA Inc. BLM9D1822-30BZ	28 V	Surface Mount	20-PQFN (8x8)	29.3 dB	1.8 GHz	2.2 GHz	20-QFN Exposed Pad
Ampleon USA Inc. BLM9D2327S-50PBG	28 V	Surface Mount	OMP-780-16G-1	27.5 dB	2.3 GHz	2.7 GHz	OMP-780-16G-1
Ampleon USA Inc. BLM9D2327-25BZ	28 V	Surface Mount	20-PQFN (8x8)		2.3 GHz	2.7 GHz	20-QFN Exposed Pad
Ampleon USA Inc. BLM9D3437-12AMZ		Surface Mount	20-LGA (7x7)	30 dBi	3.4 GHz	3.7 GHz	20-VLGA Exposed Pad
Ampleon USA Inc. BLM9D1920-08AMZ		Surface Mount	20-LGA (7x7)	26.8 dB	1.88 GHz	2.025 GHz	20-VLGA Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Amplifier IC 2.3GHz ~ 2.7GHz OMP-780-16G-1
