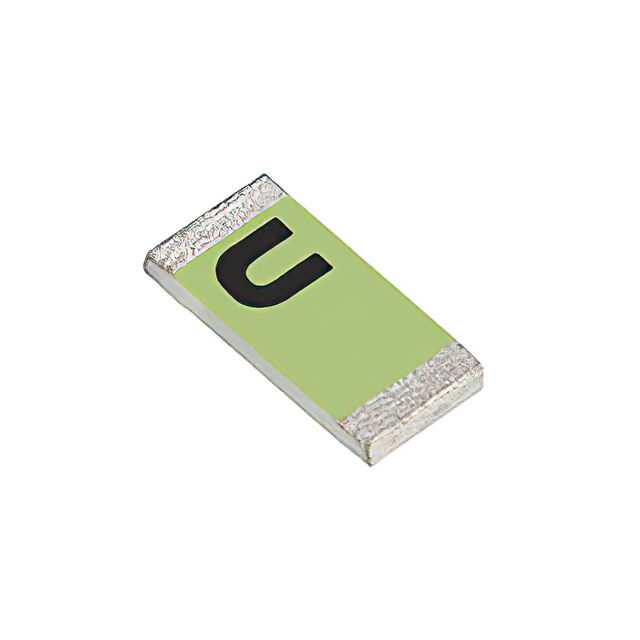

H2U14W1H1A0400
ActiveUnictron Technologies Corporation
GNSS 1560-1606 MHZ WIDE BAND TEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2U14W1H1A0400
ActiveUnictron Technologies Corporation
GNSS 1560-1606 MHZ WIDE BAND TEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2U14W1H1A0400 |
|---|---|
| Antenna Type | Chip |
| Applications | GPS, GNSS, Galileo, GLONASS |
| Frequency (Center/Band) | 1.583 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.606 GHz |
| Frequency Range [Min] | 1.56 GHz |
| Gain | 3.3 dBi |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 5000 | $ 0.36 | ||
| 10000 | $ 0.35 | |||
| 15000 | $ 0.35 | |||
| 25000 | $ 0.35 | |||
Description
General part information
H2U14 Series
RF ANTENNA Galileo, GLONASS, GNSS, GPS Chip Solder Surface Mount
Documents
Technical documentation and resources
