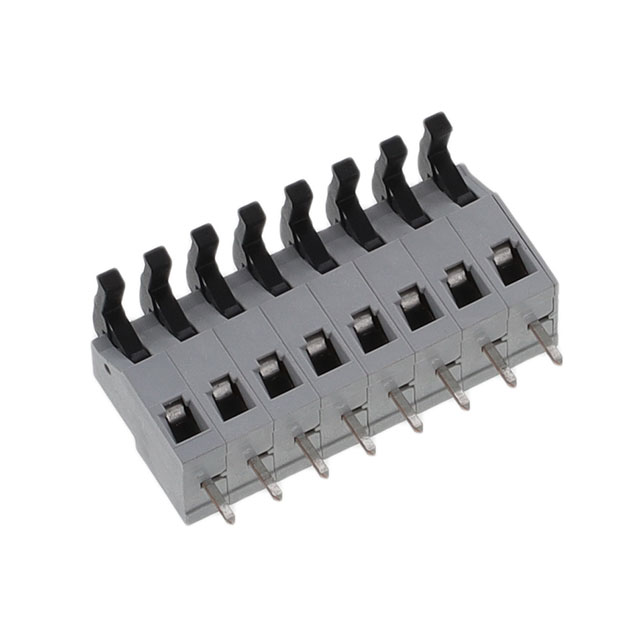

AST0250804
ActiveMETZ CONNECT USA Inc.
TERM BLK 8POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AST0250804
ActiveMETZ CONNECT USA Inc.
TERM BLK 8POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AST0250804 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Gray |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 13 A |
| Features | Lever Actuated |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 8 |
| Voltage | 300 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.07 | |
| 10 | $ 4.63 | |||
| 100 | $ 3.77 | |||
| 1000 | $ 2.78 | |||
Description
General part information
AST025 Series
8 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
