FWA065012A-11A
ActiveInventus Power

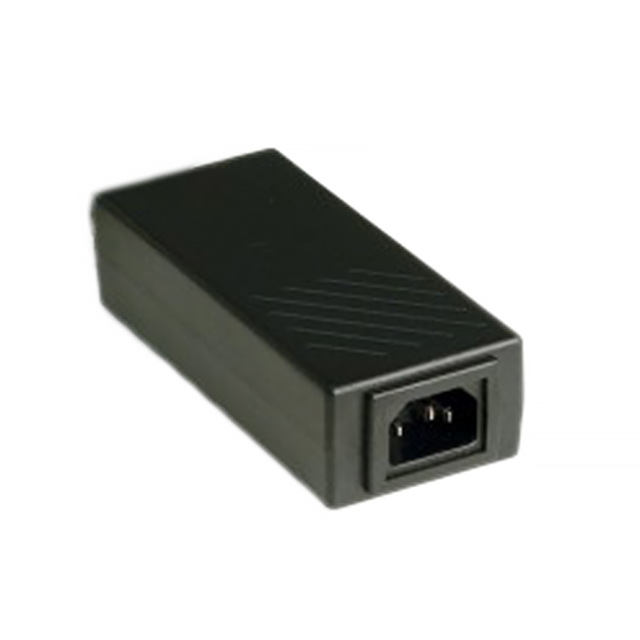

AC/DC DESKTOP ADAPTER 12V 72W
Deep-Dive with AI
Search across all available documentation for this part.
FWA065012A-11A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 12V 72W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FWA065012A-11A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | DIN |
| Output Connector | 5 Pin |
| Power (Watts) | 72 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.02 in |
| Size / Dimension [x] | 127.6 mm |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [z] | 1.37 in |
| Size / Dimension [z] | 34.8 mm |
| Voltage - Output | 12 V |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FWA065012 Series
12V 72 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
No documents available
