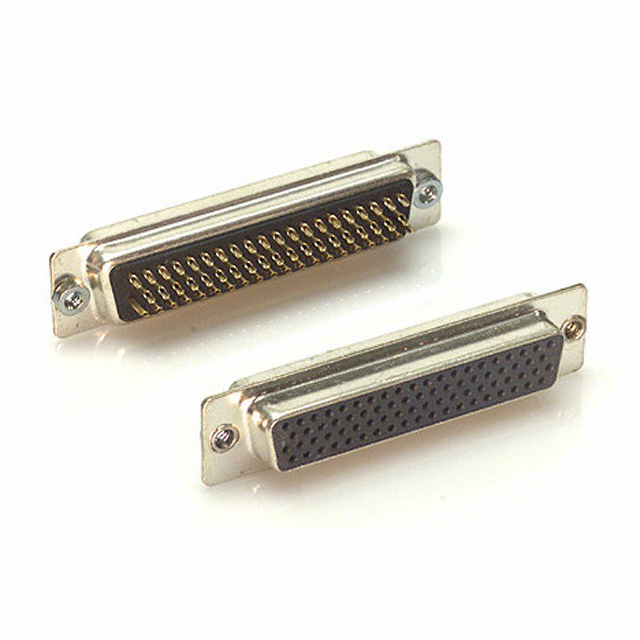

180-078-202L011

Obsolete

MH Connectors

CONN D-SUB HD RCPT 78POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

180-078-202L011

Obsolete

MH Connectors

CONN D-SUB HD RCPT 78POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-078-202L011

Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	78

180-078 Series

Part	Connector Type	Contact Type	Mounting Type	Note	Shell Material, Finish	Connector Style	Number of Positions	Flange Feature	Dielectric Material	Current Rating (Amps)	Contact Finish Thickness	Material Flammability Rating	Features	Color	Contact Finish	Contact Material	Termination
MH Connectors 180-078-273L010	Receptacle for Female Contacts	Signal	Free Hanging (In-Line)	Contacts Not Included	Nickel Plated Steel	D-Sub High Density	78	Cable Side
MH Connectors 180-078-102-011	Male Pins Plug	Signal				D-Sub High Density	78	Cable Side	Polybutylene Terephthalate (PBT)	2 A	Flash	UL94 V-0	Grounding Indents	Black	Gold
MH Connectors 180-078-202L011	Receptacle Female Sockets	Signal				D-Sub High Density	78	Cable Side	Polybutylene Terephthalate (PBT)	5 A	Flash	UL94 V-0	Shielded		Gold	Brass
MH Connectors 180-078-102-021	Male Pins Plug	Signal				D-Sub High Density	78	Cable Side	Polybutylene Terephthalate (PBT)	2 A	Flash	UL94 V-0	Grounding Indents	Black	Gold
MH Connectors 180-078-112-021	Male Pins Plug	Signal	Panel Mount Through Hole			D-Sub High Density	78	4-40 Board Side	Polyester Glass Filled	2 A	Flash	UL94 V-0	Grounding Indents	Black	Gold		Solder
MH Connectors 180-078-103L021	Male Pins Plug	Signal			Nickel Plated Steel	D-Sub High Density	78	Cable Side	Polybutylene Terephthalate (PBT)	5 A	Flash	UL94 V-0	Grounding Indents Shielded		Gold	Brass
MH Connectors 180-078-202-031	Receptacle Female Sockets	Signal				D-Sub High Density	78	4-40	Polybutylene Terephthalate (PBT)	2 A	Flash	UL94 V-0		Black	Gold
MH Connectors 180-078-101L031	Male Pins Plug	Signal			Steel Yellow Chromate Plated	D-Sub High Density	78	4-40	Polybutylene Terephthalate (PBT)	2 A	Flash	UL94 V-0	Shielded		Gold	Brass
MH Connectors 180-078-272L030	Receptacle for Female Contacts	Signal	Free Hanging (In-Line)	Contacts Not Included		D-Sub High Density	78	4-40					Shielded
MH Connectors 180-078-102-031	Male Pins Plug	Signal				D-Sub High Density	78	4-40	Polybutylene Terephthalate (PBT)	2 A	Flash	UL94 V-0	Grounding Indents	Black	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

180-078 Series

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
