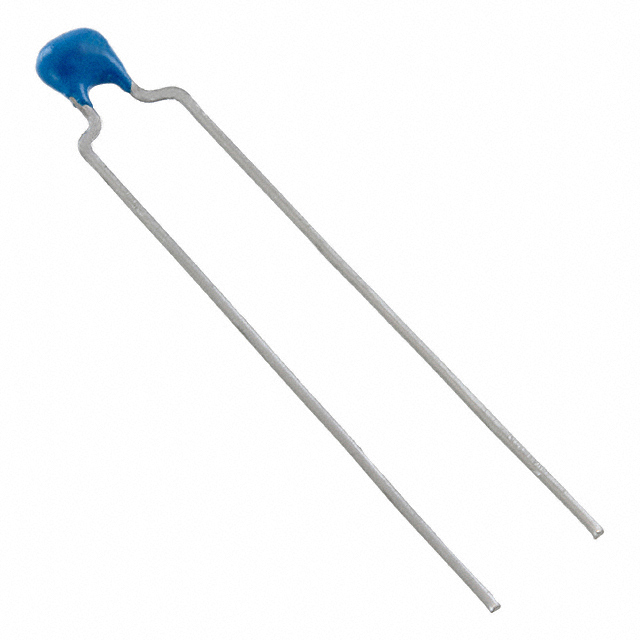

RCER71H154K1M1H03A

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 50V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCER71H154K1M1H03A

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 50V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCER71H154K1M1H03A

Applications	Automotive
Capacitance	0.15 ÁF
Height - Seated (Max) [Max] [z]	3.5 mm
Height - Seated (Max) [Max] [z]	0.138 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.157 "
Size / Dimension [x]	4 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	50 VDC

RCER71H Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Lead Style	Lead Spacing	Lead Spacing	Capacitance	Package / Case	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Temperature Coefficient	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
Murata Power Solutions Inc. RCER71H683K0M1H03A	0.098 in	0.142 in	3.6 mm	2.5 mm	Automotive	Formed Leads	5 mm	0.197 in	0.068 µF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H474K1DBH03A	0.098 in	0.157 "	4 mm	2.5 mm	Automotive	Straight	2.5 mm	0.098 in	0.47 µF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H475K3K1H03B			0.217 in 5.5 mm	0.157 " 4 mm	Automotive	Formed Leads	5 mm	0.197 in	4.7 µF	Radial	AEC-Q200	5 mm	0.197 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H335K3A2H03B			0.217 in 5.5 mm	0.157 " 4 mm	Automotive	Straight	2.5 mm	0.098 in	3.3 µF	Radial	AEC-Q200	5 mm	0.197 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H471K0M1H03A	0.098 in	0.142 in	3.6 mm	2.5 mm	Automotive	Formed Leads	5 mm	0.197 in	470 pF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H105K2K1H03B			0.217 in 5.5 mm	0.157 " 4 mm	Automotive	Formed Leads	5 mm	0.197 in	1 µF	Radial	AEC-Q200			10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC	0.157 in	4 mm
Murata Power Solutions Inc. RCER71H154K1M1H03A	0.098 in	0.157 "	4 mm	2.5 mm	Automotive	Formed Leads	5 mm	0.197 in	0.15 ÁF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H333K0M1H03A	0.098 in	0.142 in	3.6 mm	2.5 mm	Automotive	Formed Leads	5 mm	0.197 in	0.033 çF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC
Murata Power Solutions Inc. RCER71H225K2DBH03A	0.124 "	0.217 "	5.5 mm		Automotive	Straight	2.5 mm	0.098 in	2.2 µF	Radial	AEC-Q200			10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC	0.157 in	4 mm	3.15 mm
Murata Power Solutions Inc. RCER71H102K0A2H03B	0.098 in	0.142 in	3.6 mm	2.5 mm	Automotive	Straight	2.5 mm	0.098 in	0.001 µF	Radial	AEC-Q200	3.5 mm	0.138 in	10 %	-55 °C	125 °C	Through Hole	X7R	50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.52
	Tape & Box (TB)	2000	$ 0.15

Description

General part information

RCER71H Series

0.15 µF ±10% 50V Ceramic Capacitor X7R Radial
