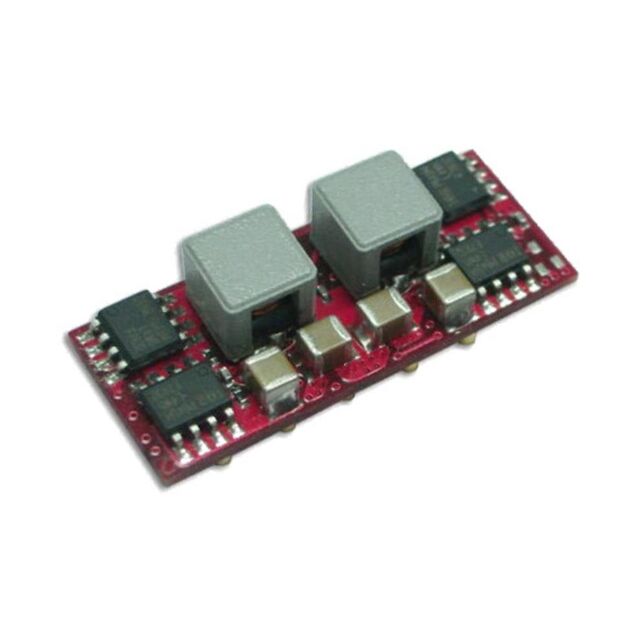

TOS 30-12SM
ObsoleteTraco Power
DC DC CONVERTER 0.8-3.6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TOS 30-12SM |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 30 A |
| Efficiency | 92 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [y] | 13.5 mm |
| Size / Dimension [y] | 0.53 in |
| Size / Dimension [z] | 8.8 mm |
| Size / Dimension [z] | 0.35 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 6 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TOS 30 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 30A 6V - 14V Input
