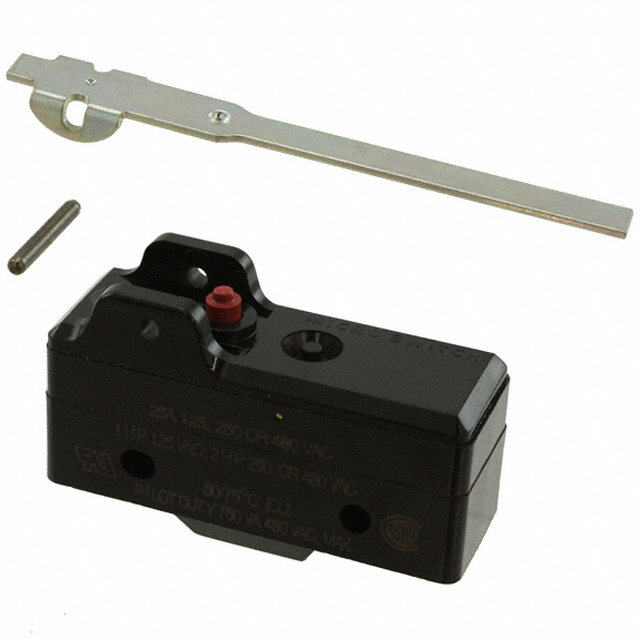

YE-2RV198-A41

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Mounting Type	Termination Style	Circuit	Current Rating (Amps)	Switch Function	Release Force [Max]	Release Force [Min]	Pretravel	Pretravel	Differential Travel	Differential Travel	Mechanical Life	Operating Position	Operating Position	Overtravel	Overtravel	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions YE-2R-A4	Round (Pin Plunger)	Chassis Mount	Screw Terminal	SPST-NO	25 A	Off-Mom
Honeywell Sensing and Productivity Solutions YE-2RV198-A41	Lever Straight	Chassis Mount	Screw Terminal	SPST-NO	25 A	Off-Mom	397 gf	283 gf	0.05 in	1.27 mm	0.007 in	0.18 mm	20000000 Cycles	18 mm	0.71 "	0.25 mm	0.01 in	125 V	425 gf	595 gf	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NO Chassis Mount
