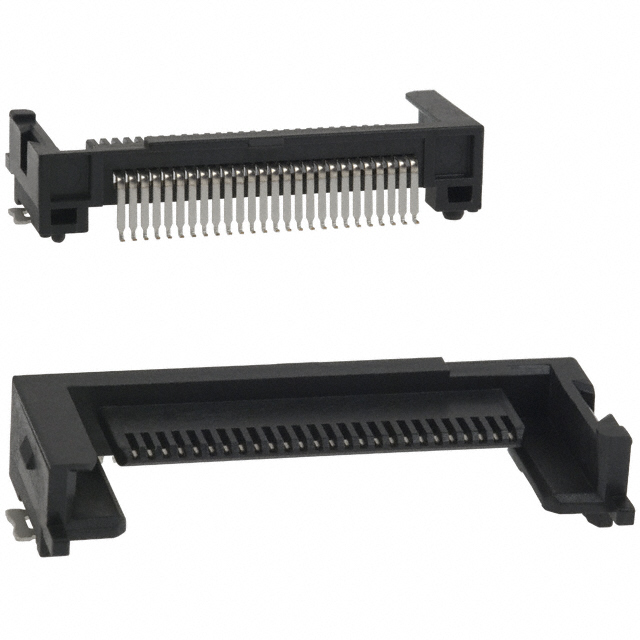

10056265-122ABTLF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL R/A
Deep-Dive with AI
Search across all available documentation for this part.
10056265-122ABTLF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10056265-122ABTLF |
|---|---|
| Card Type | PCMCIA - ExpressCard™ |
| Contact Finish | GXT™, Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Card Guide, Board Guide |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10056265 Series
26 Position Card Connector PCMCIA - ExpressCard™ Surface Mount, Right Angle Gold, GXT™
Documents
Technical documentation and resources
No documents available
