306-041-520-108
ActiveEDAC Inc.

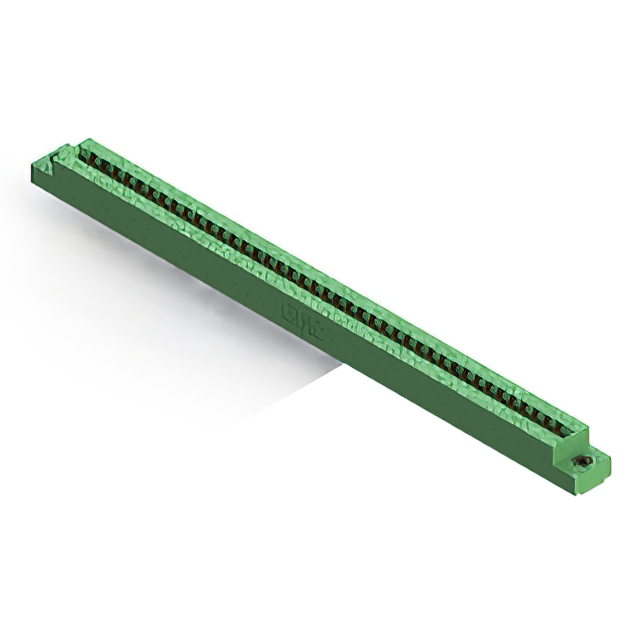

CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
306-041-520-108
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-041-520-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-041 Series
| Part | Contact Finish | Material - Insulation | Mounting Type | Contact Type | Read Out | Gender | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination Rows | Card Type | Termination | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Polyester Thermoplastic | Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
EDAC Inc. | Gold | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Tin | Polyester Thermoplastic | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 82 | 1 | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | Gold | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | Tin | Polyester Thermoplastic | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 82 | 1 | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Tin | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Gold | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
EDAC Inc. | Tin | Polyester Thermoplastic | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 82 | 1 | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||||
EDAC Inc. | Tin | Polyester Thermoplastic | Panel Mount Through Hole | Cantilever | Dual | Female | Green | 0.156 in | 3.96 mm | 82 | 1 | Non Specified - Dual Edge | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 23.94 | |
Description
General part information
306-041 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
