L1T2-3090500001900

Active

Lumileds

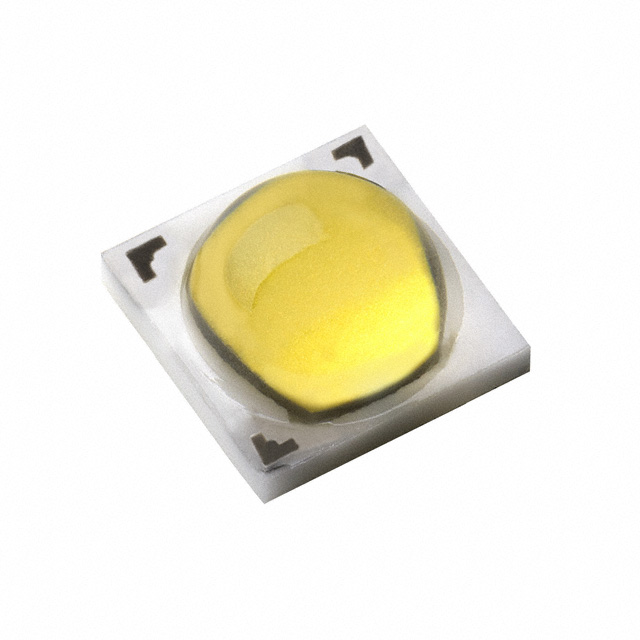

LED LUXEON WARM WHITE 3000K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LUXEON H50-2,T,TX Assembly, Handling +1

L1T2-3090500001900

Active

Lumileds

LED LUXEON WARM WHITE 3000K 2SMD

Deep-Dive with AI

DocumentsDatasheet LUXEON H50-2,T,TX Assembly, Handling +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1T2-3090500001900

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	1.5 A
Flux @ 85°C, Current - Test	188 lm
Height - Seated (Max) [Max]	2.12 mm
Height - Seated (Max) [Max]	0.083 in
Lumens/Watt @ Current - Test	96 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead Exposed Pad
Size / Dimension [x]	3.7 mm
Size / Dimension [x]	0.146 in
Size / Dimension [y]	0.146 "
Size / Dimension [y]	3.7 mm
Thermal Resistance of Package [diameter]	3 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.8 V

L1T2 Series

Part	Thermal Resistance of Package [diameter]	Package / Case	Mounting Type	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Flux @ 85°C, Current - Test	Current - Max [Max]	CCT (K)	Supplier Device Package	Current - Test	CCT (K)	Flux @ 25°C, Current - Test
Lumileds L1T2-3580500002400	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	80	2.12 mm	0.083 in	121 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White	238 lm	1.5 A
Lumileds L1T2-3085500001900	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	85	2.12 mm	0.083 in		3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White		1.05 A	3000 K	2-SMD	350 mA
Lumileds L1T2-5085500002000	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	85	2.12 mm	0.083 in		3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Cool White		1.05 A	5000 K	2-SMD	350 mA	5-Step MacAdam Ellipse
Lumileds L1T2-5770000000000	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	70	2.12 mm	0.083 in	140 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Cool White	275 lm	1.5 A	5700 K
Lumileds L1T2-3580500000000	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	80	2.12 mm	0.083 in	140 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White		1.5 A		2-SMD			274 lm
Lumileds L1T2-3090500001900	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	90	2.12 mm	0.083 in	96 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White	188 lm	1.5 A	3000 K
Lumileds L1T2-5785300000000	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	85	2.12 mm	0.083 in		3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Cool White		1.05 A	5700 K	2-SMD	350 mA
Lumileds L1T2-3085300002000	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	85	2.12 mm	0.083 in	101 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White	197 lm	1.5 A	3000 K
Lumileds L1T2-3090300001900	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	90	2.12 mm	0.083 in	96 lm/W	3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White	188 lm	1.5 A	3000 K
Lumileds L1T2-3085000002100	3 °C/W	2-SMD No Lead Exposed Pad	Surface Mount	85	2.12 mm	0.083 in		3.7 mm	0.146 "	3.7 mm	0.146 in	120 °	2.8 V	Warm White		1.05 A		2-SMD	350 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.39
		2000	$ 1.33
		5000	$ 1.31

Description

General part information

L1T2 Series

LED Lighting LUXEON TX White, Warm 3000K 5-Step MacAdam Ellipse 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad

Documents

Technical documentation and resources

Datasheet

LUXEON H50-2,T,TX Assembly, Handling

Datasheet

LUXEON TX Brief

Datasheet
