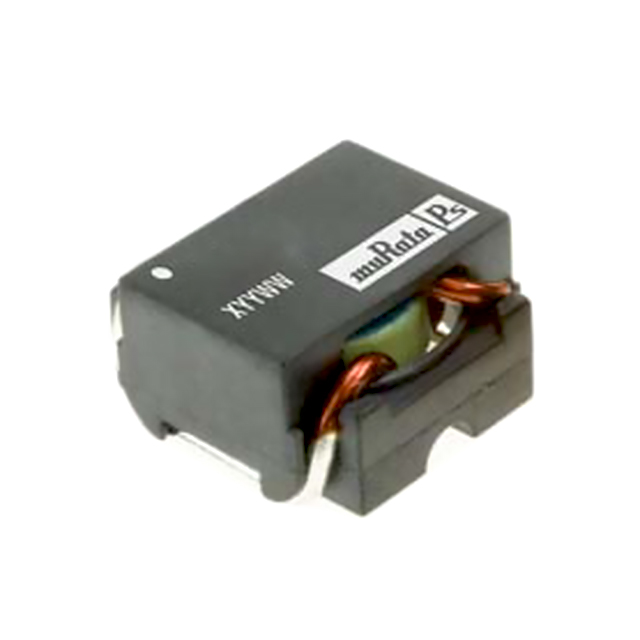

42212C

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.1UH 11.5A 3.8MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide

42212C

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.1UH 11.5A 3.8MOHM SM

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	42212C

Current Rating (Amps)	11.5 A
Frequency - Self Resonant	162 MHz
Height - Seated (Max) [Max] [z]	9.4 mm
Height - Seated (Max) [Max] [z]	0.37 in
Inductance	2.1 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	0.618 in
Size / Dimension [x]	15.7 mm
Size / Dimension [y]	15.37 mm
Size / Dimension [y]	0.605 in
Tolerance	15 %
Type	Toroidal

42 Series

Part	Frequency - Self Resonant	Current Rating (Amps)	Shielding	Type	Inductance Frequency - Test	Package / Case	Tolerance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. 42212C	162 MHz	11.5 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	15.37 mm	0.618 in	0.605 in	15.7 mm	125 °C	-40 °C	2.1 µH	9.4 mm	0.37 in
Murata Power Solutions Inc. 42103C	38 MHz	15.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.88 mm	0.94 in	0.94 in	23.88 mm	125 °C	-40 °C	10.2 µH			6 mOhm
Murata Power Solutions Inc. 42842C-R	50 MHz	10.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	8.45 µH			8 mOhm
Murata Power Solutions Inc. 42103C-R	38 MHz	15.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.88 mm	0.94 in	0.94 in	23.88 mm	125 °C	-40 °C	10.2 µH			6 mOhm
Murata Power Solutions Inc. 42842C	50 MHz	10.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	8.45 µH			8 mOhm
Murata Power Solutions Inc. 42282C	116 MHz	13.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	2.84 µH			3.5 mOhm
Murata Power Solutions Inc. 42282C-R	116 MHz	13.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	2.84 µH			3.5 mOhm
Murata Power Solutions Inc. 42183C	24 MHz	10.9 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	23.87 mm	0.94 in	0.94 in	23.87 mm	125 °C	-40 °C	17.6 µH				11.6 mOhm
Murata Power Solutions Inc. 42422C-R	90 MHz	11.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	17 mm	0.669 "	0.669 in	17 mm	125 °C	-40 °C	4.23 µH
Murata Power Solutions Inc. 42652C		12.4 A	Unshielded	Toroidal	100 kHz	Nonstandard	15 %	Surface Mount	18.8 mm	0.74 in	0.74 in	18.8 mm	125 °C	-40 °C	6.5 µH			6 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

42 Series

2.1 µH Unshielded Toroidal Inductor 11.5 A 3.8mOhm Max Nonstandard

Documents

Technical documentation and resources

Power Magnetics Selection Guide

Datasheet
