09140093101

Active

HARTING Technology Group

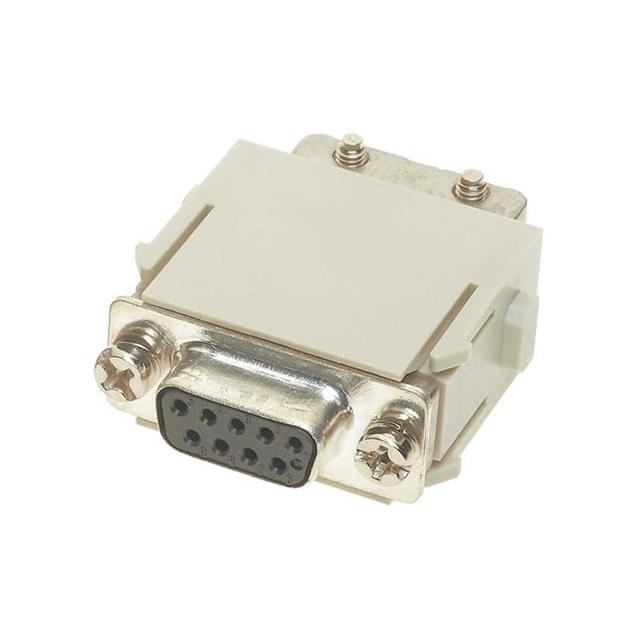

RECTANGULAR HAN D SUB MODULE, RCPT, 9WAY, CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR HAN D SUB MODULE, RCPT, 9WAY, CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	09140093101

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han-Modular®
Current Rating (Amps)	5 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	30 VDC

Part	Material Flammability Rating	Gender	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Type	Color	Current Rating (Amps)	Housing Material	Number of Positions	Voltage Rating
HARTING Technology Group 09140093101	UL94 V-0	Female	Module without Contacts	125 °C	-40 °C	Crimp	Han-Modular®	Gray	5 A	Polycarbonate (PC)	9	30 VDC
HARTING Technology Group 09140093001	UL94 V-0	Male	Module without Contacts	125 °C	-40 °C	Crimp	Han-Modular®	Gray	5 A	Polycarbonate (PC)	9	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 9 Position Crimp
