0395056012

Active

Molex

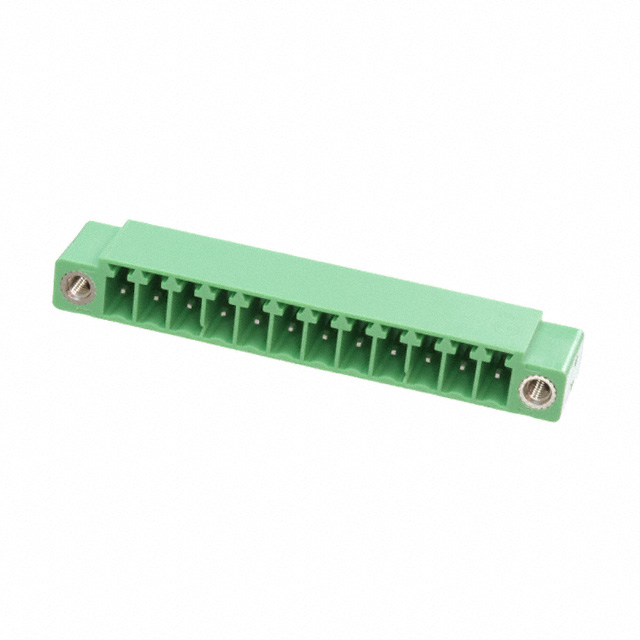

TERM BLOCK HDR 12POS VERT 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395056012

Active

Molex

TERM BLOCK HDR 12POS VERT 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395056012

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	8 A
Features	Mating Flange
Header Orientation	Vertical
Insulation Height	9.14 mm
Insulation Height	0.36 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039505 Series

Part	Termination Style	Number of Levels	Color	Contact Mating Finish	Current - UL	Mounting Type	Header Orientation	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Features	Number of Positions	Type	Insulation Height	Insulation Height	Contact Material	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Material Flammability Rating	Number of Positions
Molex 0395051020	Solder	1	Black	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	20	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	20	UL94 V-0
Molex 0395056505	Solder	1	Green	Gold	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange		Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	5	UL94 V-0
Molex 0395056517	Solder	1	Green	Gold	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange		Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	17	UL94 V-0
Molex 0395051002	Solder	1	Black	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	2	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	2	UL94 V-0
Molex 0395051014	Solder	1	Black	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	14	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	14	UL94 V-0
Molex 0395056012	Solder	1	Green	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	12	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	12	UL94 V-0
Molex 0395056007	Solder	1	Green	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	7	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	7	UL94 V-0
Molex 0395056516	Solder	1	Green	Gold	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange		Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	16	UL94 V-0	16
Molex 0395051017	Solder	1	Black	Tin	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange		Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	17	UL94 V-0
Molex 0395051502	Solder	1	Black	Gold	8 A	Through Hole	Vertical	3.5 mm	0.138 in	3.5 mm	0.138 in	Mating Flange	2	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	Brass	300 V	-40 °C	105 ░C	2	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.34
		10	$ 2.24
		25	$ 2.03
		50	$ 1.91
		100	$ 1.87
		240	$ 1.95
		480	$ 1.84
		720	$ 1.78
		1200	$ 1.78

Description

General part information

039505 Series

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
