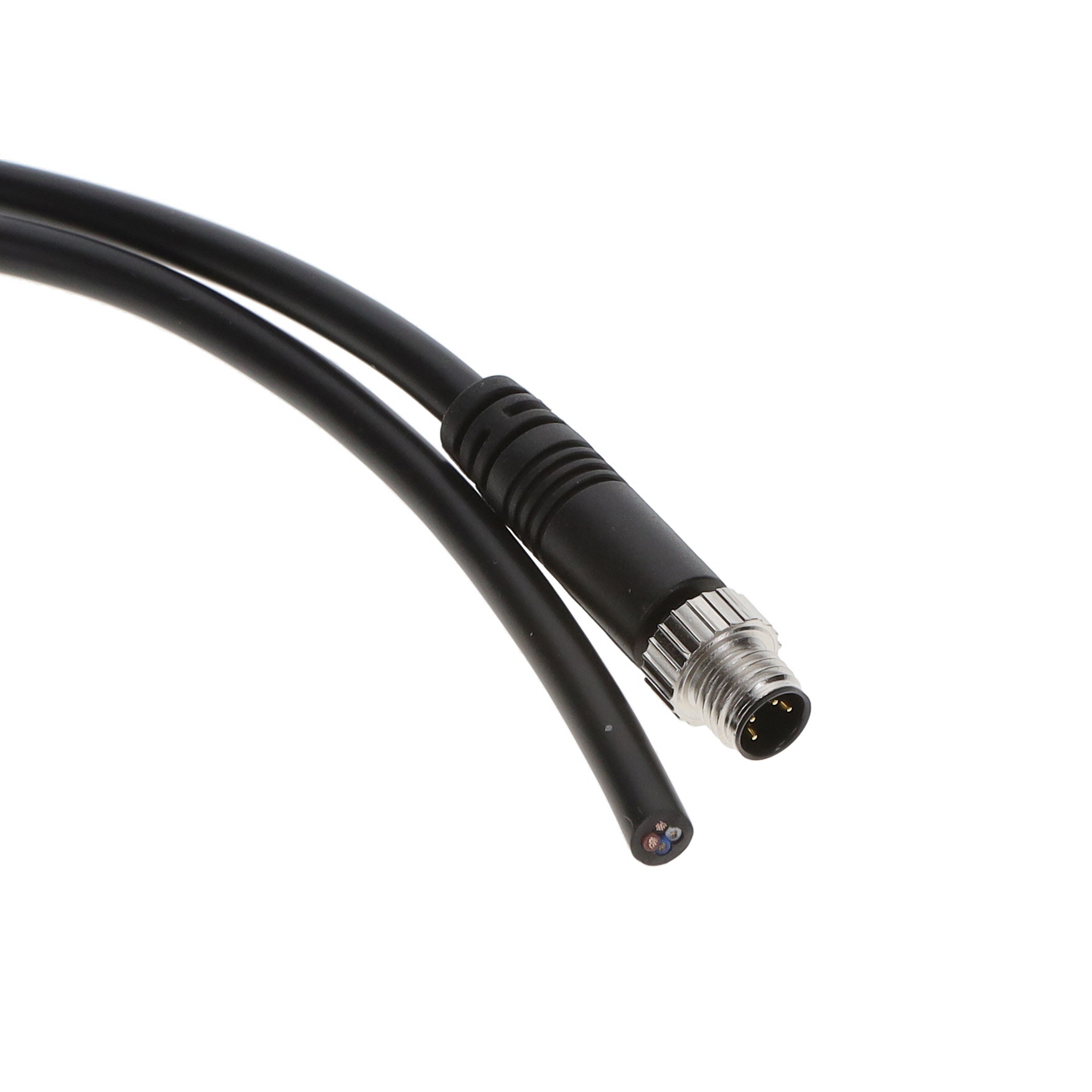

8-04AMMM-SL7A05

Active

Amphenol LTW

SENSOR CABLE, M8 PLUG, FREE END, 4 POSITIONS, 5 M, 16.4 FT, M SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Enhanced Product Overview EN

8-04AMMM-SL7A05

Active

Amphenol LTW

SENSOR CABLE, M8 PLUG, FREE END, 4 POSITIONS, 5 M, 16.4 FT, M SERIES

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Enhanced Product Overview EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-04AMMM-SL7A05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

8-04AMMM Series

Part	Cable Type	1st Connector Gender	Color	Shielding	Assembly Configuration	2nd Connector Type	1st Connector Shell Size - Insert	Ingress Protection	1st Connector Type	Length [x]	Length [x]	1st Connector Number of Positions	Cable Material	Usage	1st Connector Number of Positions Loaded	1st Connector Mounting Type
Amphenol LTW 8-04AMMM-SR7A02	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug Right Angle	2 m	6.56 ft	4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)
Amphenol LTW 8-04AMMM-SL7B01	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug	1 m	3.28 ft	4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)
Amphenol LTW 8-04AMMM-SL7B05	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug			4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)
Amphenol LTW 8-04AMMM-SL7A02	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug	2 m	6.56 ft	4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)
Amphenol LTW 8-04AMMM-SR7B10	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug Right Angle			4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)
Amphenol LTW 8-04AMMM-SL7A05	Round	Male Pins	Black	Unshielded	Standard	Wire Leads	M8	IP67 - Dust Tight Waterproof	Plug	500 mm	1.64 ft	4	Polyvinyl Chloride (PVC)	Industrial Environments	All	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.31
		10	$ 13.57
		30	$ 13.05
		50	$ 12.53
		100	$ 11.83
		250	$ 10.79
		500	$ 10.09
		1000	$ 9.26
Newark	Each	10	$ 12.00
		25	$ 11.02
		50	$ 9.84
		100	$ 9.05
		250	$ 8.79

Description

General part information

8-04AMMM Series

The 8-04AMMM-SL7A05 from Amphenol LTW is M series sensor connector. This M8 size connector moulded with cable meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet

Enhanced Product Overview EN

Datasheet
