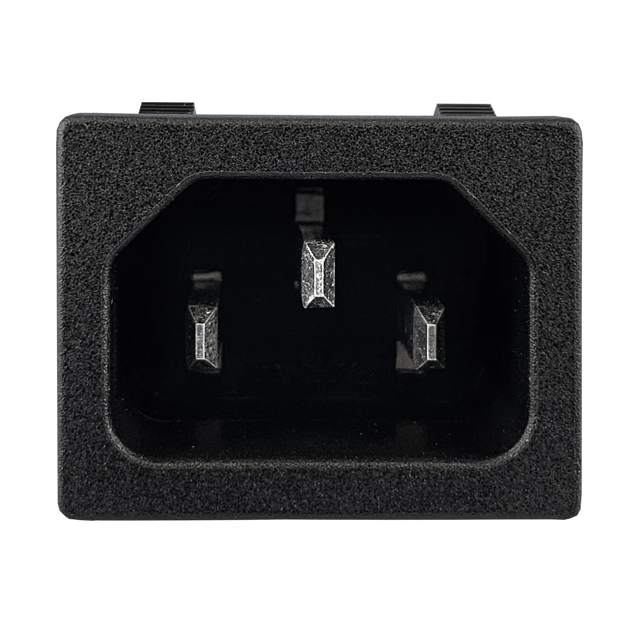

701W-X2/02

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	701W-X2/02

Accomodates a Fuse	False
Approval Agency	VDE, CCC, UL, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27 mm
Panel Cutout Dimensions [y]	20 mm
Panel Thickness [Max]	1.5 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Min]	0.81 mm
Panel Thickness [Min]	0.032 in
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Mounting Type	Voltage Rating - Appliance Inlet	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Connector Type	Current Rating - Appliance Inlet	Termination	Connector Style	Approval Agency	Panel Thickness [Min] [x]	Panel Thickness [Max] [x]	Termination	Termination	Panel Thickness [Max]
Qualtek 701W-X2/02	20 mm	27 mm	Unfiltered - Commercial	Panel Mount Snap-In	250 VAC	0.81 mm	0.032 in	1.5 mm	0.059 in	Male Blades Receptacle	10 A	Solder Eyelet	IEC 320-C14	CCC CSA UL VDE
Qualtek 701W-X2/04	20.5 mm	27 mm	Unfiltered - Commercial	Panel Mount Snap-In	250 VAC					Male Blades Receptacle	10 A	Quick Connect	IEC 320-C14	CSA UL VDE	0.031 " 0.8 mm	0.059 " 1.5 mm	0.25 in	6.3 mm
Qualtek 701W-X2/10	20.5 mm	26.7 mm	Unfiltered - Commercial	Panel Mount Snap-In Through Hole Right Angle	250 VAC	0.79 mm	0.031 "		0.079 "	Male Blades Receptacle	10 A	Solder	IEC 320-C14	CSA UL VDE					2 mm
