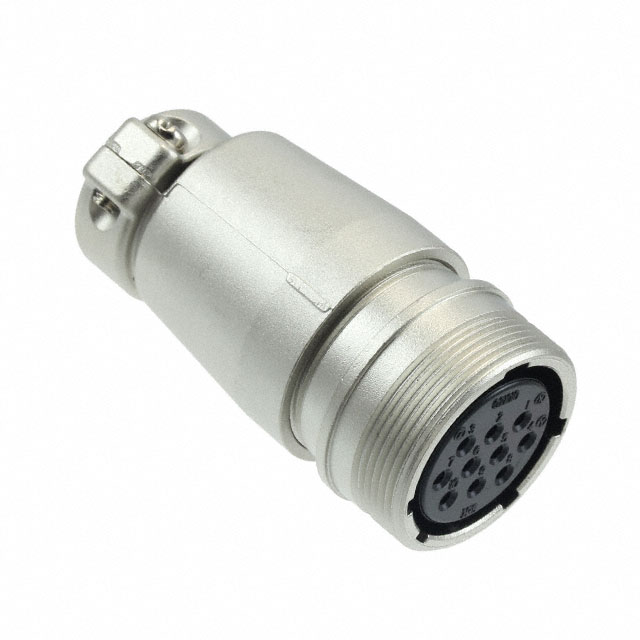

JR21JK-10S

LTB

Hirose Electric USA, Inc.

CONN JACK FMALE 10P SOLDER CUP

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN JACK FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR21JK-10S

Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [custom]	0.591 in
Cable Opening [custom]	15 mm
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Cable Clamp, Backshell
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Shell Size - Insert	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Primary Material	Current Rating (Amps)	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Insert Material	Mounting Type	Features	Contact Finish - Mating	Number of Positions	Backshell Material, Plating	Shielding	Contact Material	Shell Material	Voltage Rating	Number of Positions
Hirose Electric USA, Inc. JR21JK-10S	118.1 µin	3 µm	Silver	21	Keyed	-25 °C	85 °C	Nickel	Metal	10 A	Female Sockets Jack	0.591 in	15 mm	UL94 V-0	Phenol Formaldehyde (PF)	Free Hanging (In-Line)	Backshell Cable Clamp	Silver	10	Aluminum Alloy Nickel	Unshielded	Copper Alloy	Aluminum Alloy	250 VAC 350 V
Hirose Electric USA, Inc. JR21JK-16P			Silver	21	Keyed	-25 °C	85 °C	Nickel	Metal	5 A	Jack Male Pins	0.591 in	15 mm	UL94 V-0	Phenol Formaldehyde (PF)	Free Hanging (In-Line)	Backshell Cable Clamp	Silver		Aluminum Alloy Nickel	Unshielded	Copper Alloy	Aluminum Alloy	250 VAC 350 V	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.79

General part information

10 Position Circular Connector Jack, Female Sockets Solder Cup
