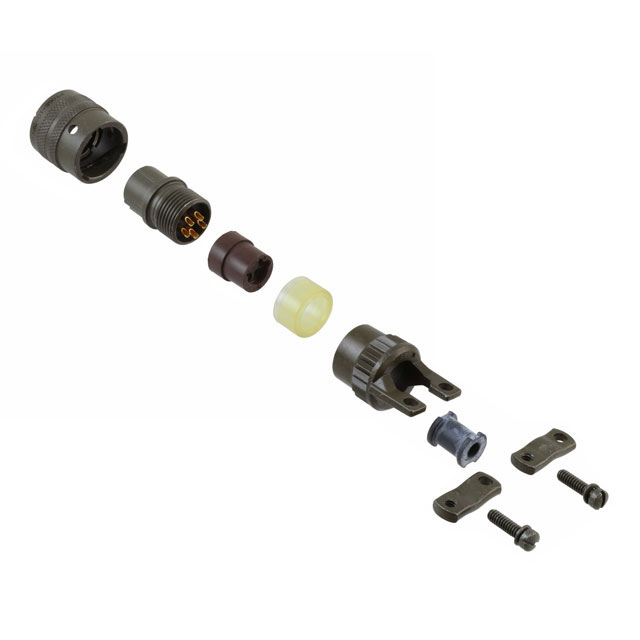

PT06E-10-5P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT06E-10-5P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT06E-10-5P(SR)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	10-5
Shielding	Unshielded

PT06E Series

Part	Qualification	Orientation	Contact Material	Shell Material	Ingress Protection	Number of Positions	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Shell Finish	Color	Applications	Insert Material	Backshell Material, Plating	Contact Finish - Mating	Fastening Type	Mounting Type	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations PT06E-12-10S(SR)	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Sealed	10	Metal	-55 °C	125 °C	Unshielded	Strain Relief	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Female Sockets Plug
Amphenol Industrial Operations PT06E-16-23S	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Sealed	23	Metal	-55 °C	125 °C	Unshielded	Backshell Coupling Nut	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Female Sockets Plug	16	23
Amphenol Industrial Operations PT06E-10-5P(SR)	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Sealed		Metal	-55 °C	125 °C	Unshielded	Strain Relief	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Male Pins Plug			10-5
Amphenol Industrial Operations PT06E-12-10P(470)	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Sealed	10	Metal	-55 °C	125 °C	Unshielded	Backshell Cable Clamp Coupling Nut	Black Zinc Cobalt	Black	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Black Zinc Cobalt	Gold	Bayonet Lock	Free Hanging (In-Line)	Male Pins Plug
Amphenol Industrial Operations PT06E16-8P-SR	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Resistant	8	Metal	-55 °C	125 °C	Unshielded	Strain Relief	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Male Pins Plug				1000 VAC	12.7 mm	0.5 in
Amphenol Industrial Operations PT06E8-3S-470	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Resistant		Metal	-55 °C	125 °C	Unshielded		Black Zinc Cobalt	Black	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Black Zinc Cobalt	Gold	Bayonet Lock	Free Hanging (In-Line)	Female Sockets Plug			8-3	600 VAC
Amphenol Industrial Operations PT06E14-12SX-SR	MIL-DTL-26482 Series I	X	Copper Alloy	Aluminum	Environment Resistant	12	Metal	-55 °C	125 °C	Unshielded	Strain Relief	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Female Sockets Plug			14-12
Amphenol Industrial Operations PT06E20-39S-SR	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Resistant	39	Metal	-55 °C	125 °C	Unshielded	Strain Relief	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Female Sockets Plug	20	39
Amphenol Industrial Operations PT06E-8-4P	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Sealed	4	Metal	-55 °C	125 °C	Unshielded	Backshell Coupling Nut	Olive Drab Chromate over Cadmium	Olive Drab	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Olive Drab Cadmium	Gold	Bayonet Lock	Free Hanging (In-Line)	Male Pins Plug			8-4
Amphenol Industrial Operations PT06E-12-10P(476)	MIL-DTL-26482 Series I	N	Copper Alloy	Aluminum	Environment Resistant	10	Metal	-55 °C	125 °C	Unshielded	Backshell Cable Clamp Coupling Nut	Black Zinc Cobalt	Black	Aerospace Industrial Instrumentation Mass Transit Military	Neoprene	Aluminum Black Zinc Cobalt	Gold	Bayonet Lock	Free Hanging (In-Line)	Male Pins Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.90
		10	$ 32.31
		100	$ 28.92

Description

General part information

PT06E Series

5 Position Circular Connector Plug, Male Pins Solder Cup
