AS1374-BWLT1827

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.8V/2.7V 6-WLCSP

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.8V/2.7V 6-WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	AS1374-BWLT1827

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	90 çA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

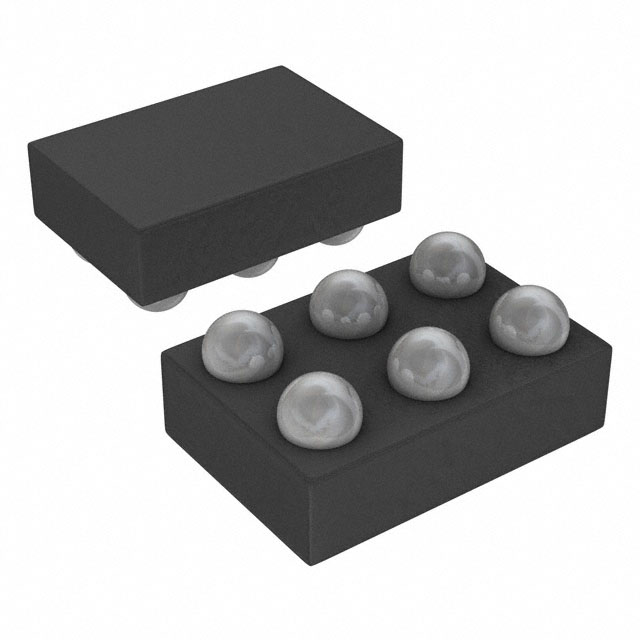

Package / Case	6-UFBGA, WLCSP
Protection Features	Over Current, Over Temperature
Supplier Device Package	6-WLCSP
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V, 2.7 V
Voltage Dropout (Max) [Max]	0.15 V

Part	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Output Configuration	Protection Features	Number of Regulators	Output Type	Mounting Type	Current - Output	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Quiescent (Iq)	Control Features	Package / Case	Voltage - Output (Min/Fixed) [Min]
ams-OSRAM USA INC. AS1374-BWLT1827	1.8 V 2.7 V	0.15 V	Positive	Over Current Over Temperature	2	1.81 mOhm	Surface Mount	200 mA	5.5 V	85 °C	-40 °C	6-WLCSP	90 çA	Enable	6-UFBGA WLCSP
ams-OSRAM USA INC. AS1374-BWLT1818	1.8 V		Positive	Over Current Over Temperature	2	1.81 mOhm	Surface Mount	200 mA	5.5 V	85 °C	-40 °C	6-WLCSP	90 çA	Enable	6-UFBGA WLCSP	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 2 Output 200mA, 200mA 6-WLCSP
