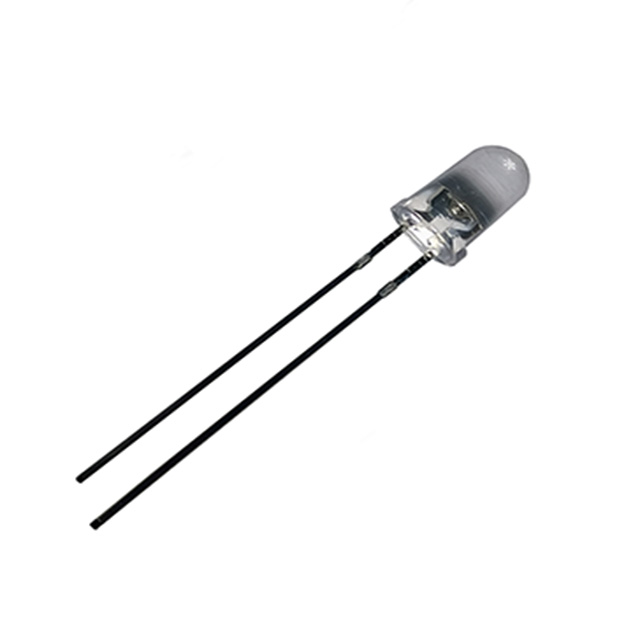

QBL8IW15C-CW-2897
ActiveQT Brightek (QTB)
LED COOL WHITE CLEAR 5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL8IW15C-CW-2897
ActiveQT Brightek (QTB)
LED COOL WHITE CLEAR 5MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL8IW15C-CW-2897 |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.85 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 45000 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength - Dominant | 9500 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.40 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.11 | |||
Description
General part information
QBL8IW15 Series
White, Cool 9500K LED Indication - Discrete 3.1V Radial
