2STW1695

Obsolete

STMicroelectronics

TRANS PNP 140V 10A TO-247-3

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS PNP 140V 10A TO-247-3

Technical Specifications

Parameters and characteristics for this part

Specification	2STW1695

Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	70
Frequency - Transition	20 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C

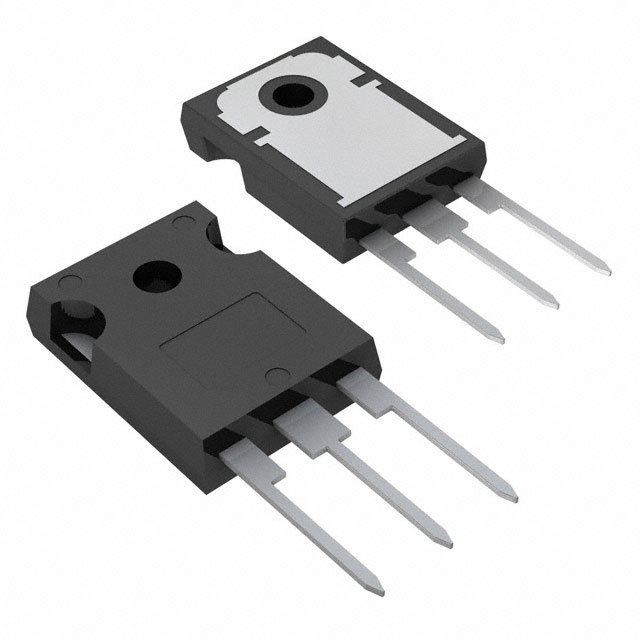

Package / Case	TO-247-3
Power - Max [Max]	100 W
Supplier Device Package	TO-247-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	700 mV
Voltage - Collector Emitter Breakdown (Max)	140 V

Part	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Operating Temperature	Supplier Device Package	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)
STMicroelectronics 2STW1695	Through Hole	70	PNP	100 W	100 nA	20 MHz	150 °C	TO-247-3	TO-247-3	700 mV	140 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 140 V 10 A 20MHz 100 W Through Hole TO-247-3
