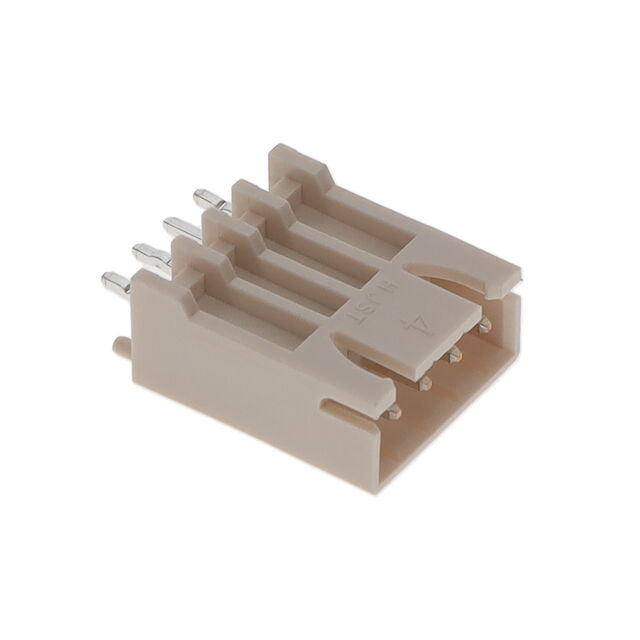

BH4B-XH-2
ActiveJST Sales America Inc.
CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
BH4B-XH-2
ActiveJST Sales America Inc.
CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH4B-XH-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height [z] | 7 mm |
| Insulation Height [z] | 0.276 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 9.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.39 | |||
| 300 | $ 0.27 | |||
| 600 | $ 0.26 | |||
| 1200 | $ 0.22 | |||
| 5100 | $ 0.19 | |||
| 10200 | $ 0.17 | |||
Description
General part information
BH4B-XH Series
Connector Header Through Hole 4 position 0.098" (2.50mm)
Documents
Technical documentation and resources
