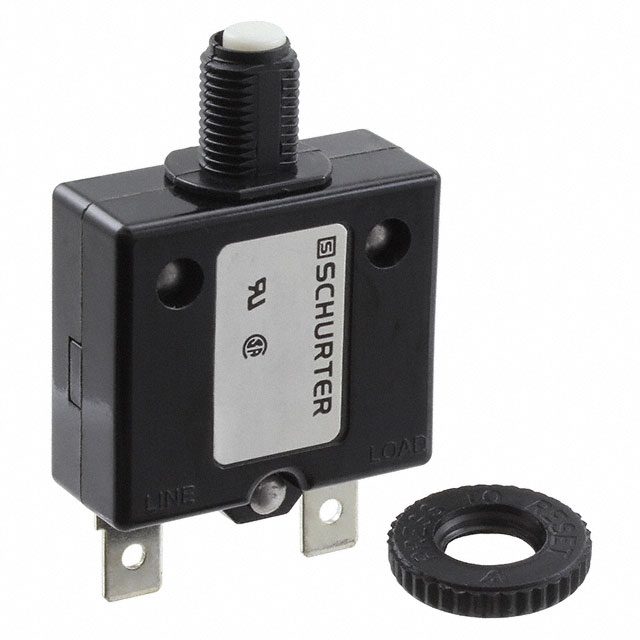

TS-701-HT-25

Obsolete

SCHURTER Inc.

CIR BRKR THRM 25A 250VAC 50VDC

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

CIR BRKR THRM 25A 250VAC 50VDC

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Approval Agency	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Number of Poles	Breaker Type
SCHURTER Inc. TS-701-HT-30	50 VDC	CSA C22.2 UL1077	30 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-25	50 VDC	CSA C22.2 UL1077	25 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-12H	50 VDC		12 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-40P	50 VDC	CSA C22.2 UL1077	40 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HM-40-KW	50 VDC	CSA C22.2 UL1077	40 A	250 V	Pushbutton	1	Thermal
SCHURTER Inc. TS-701-HT-10H	50 VDC	CSA C22.2 UL1077	10 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-10-K	50 VDC		10 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-12-K	50 VDC		12 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-8H	50 VDC		8 A	250 V	Push to Reset	1	Thermal
SCHURTER Inc. TS-701-HT-20	50 VDC	CSA C22.2 UL1077	20 A	250 V	Push to Reset	1	Thermal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.78

General part information

Circuit Breaker Thermal 25A 250 V AC 50 V DC Push to Reset Panel Mount
