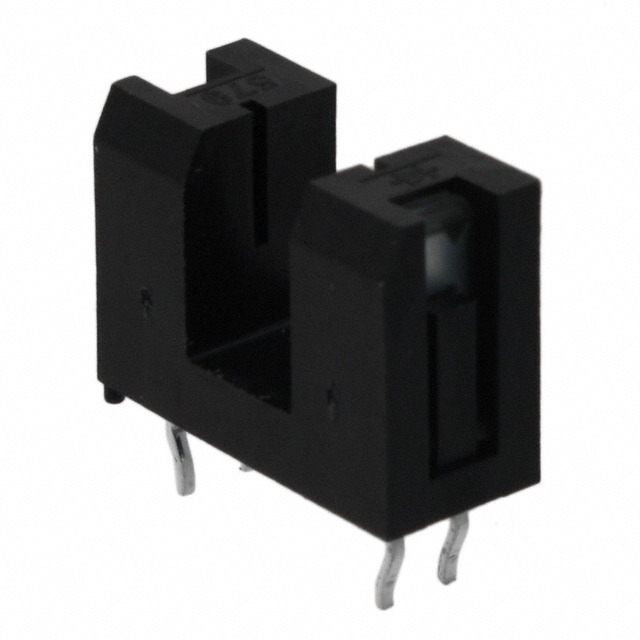

RPI-579N1E

Obsolete

Rohm Semiconductor

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-579N1E

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	10 µs
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Distance	Sensing Distance	Response Time	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max)	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Type	Sensing Method
Rohm Semiconductor RPI-579N1E	0.197 in	5 mm	10 µs	30 mA	50 mA	Phototransistor	-25 °C	85 °C	PCB Mount	Through Hole	30 V	Unamplified	Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optical Sensor Through-Beam 0.197" (5mm) Phototransistor PCB Mount
