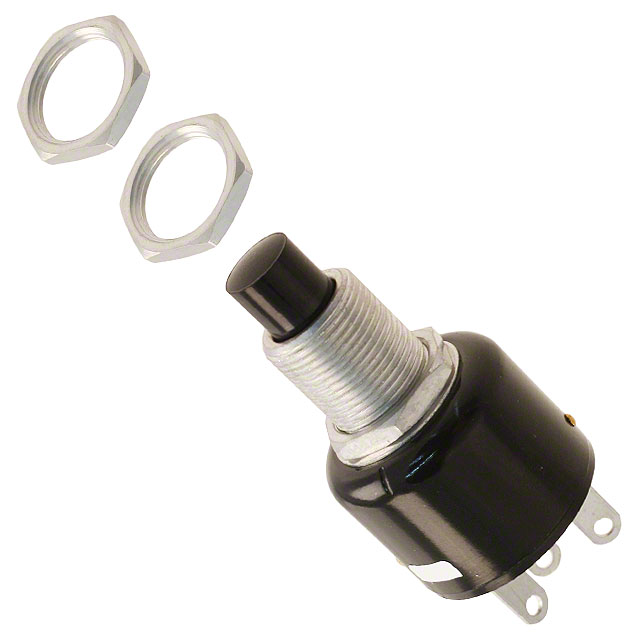

07-26 BLK

Active

Grayhill Inc.

SWITCH PUSH SPDT 10A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPDT 10A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Actuator Type	Voltage Rating - AC	Mechanical Life	Current Rating (Amps)	Electrical Life	Actuator Marking	Switch Function	Circuit	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
Grayhill Inc. 07-26 BLK	Panel Mount Rear	Round Plunger	115 V	25000 Steps	10 A	25000 Steps	No Marking	On-Mom	SPDT	Black	Standard	85 °C	-40 °C	Solder Lug
Grayhill Inc. 07-26 RED	Panel Mount Rear	Round Plunger	115 V	25000 Steps	10 A	25000 Steps	No Marking	On-Mom	SPDT	Red	Standard	85 °C	-40 °C	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 71.05

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources

No documents available
