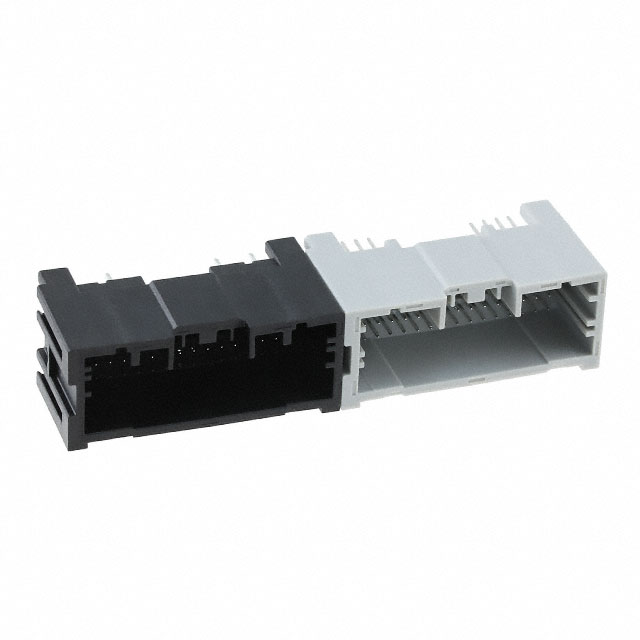

0349601220
ObsoleteMolex
CONN HEADER VERT 72POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0349601220
ObsoleteMolex
CONN HEADER VERT 72POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0349601220 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 7.65 mm |
| Contact Length - Post | 0.301 in |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Height | 0.697 in |
| Insulation Height | 17.7 mm |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 38 Positions, 34 Positions |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
034960 Series
Connector Header Through Hole 72 (34 + 38) position
Documents
Technical documentation and resources
