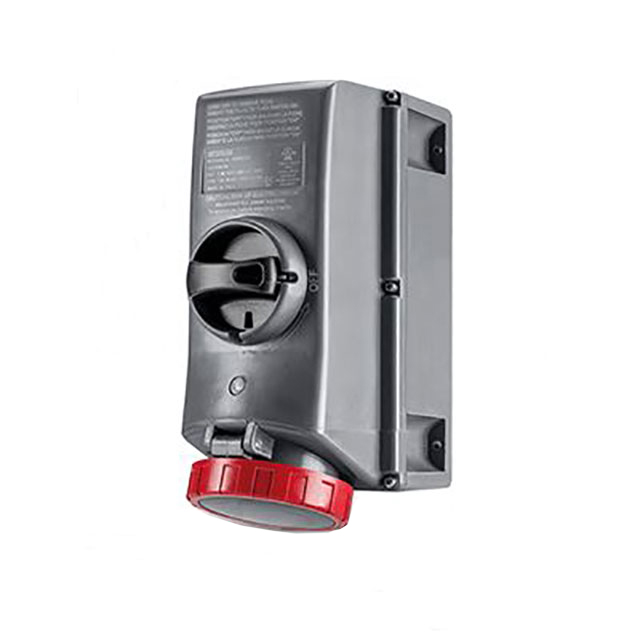

SCM460MI7W

Active

Scame

AC PLUG PIN & SLEEVE

Search across all available documentation for this part.

Active

Scame

AC PLUG PIN & SLEEVE

Technical Specifications

Parameters and characteristics for this part

Specification	SCM460MI7W

Approval Agency	cULus, CE
Connector Style	Pin and Sleeve (3P4W)
Connector Type	Female Sockets, Plug
Current Rating (Amps)	30 A
Features	Cover, LED Indicator
Ingress Protection	IP69K, IP67, IP66
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Right Angle, Flange
Number of Positions	4
Termination	Screw
Voltage Rating	480 VAC
Voltage Rating	3 Phase

Part	Ingress Protection	Material Flammability Rating	Approval Agency	Voltage Rating	Voltage Rating	Connector Type	Current Rating (Amps)	Mounting Type	Connector Style	Features	Number of Positions	Termination
Scame SCM460MI7W	IP66 IP67 IP69K	UL94 V-0	CE cULus	480 VAC	3 Phase	Female Sockets Plug	30 A	Flange Panel Mount Right Angle	Pin and Sleeve (3P4W)	Cover LED Indicator	4	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Female Sockets Pin and Sleeve (3P4W) Panel Mount, Flange, Right Angle
