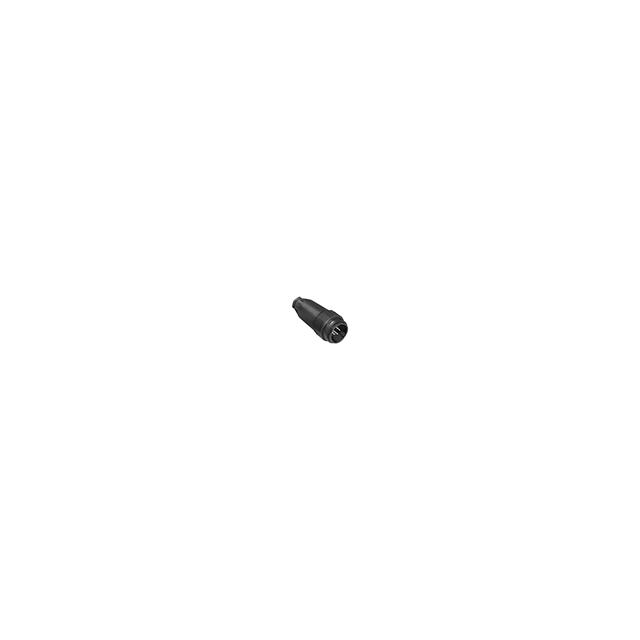

C016 10I014 003 2

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 15POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 15POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C016 10I014 003 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm, 1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Shielding	Unshielded
Type	For Male Pins

Part	Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Connector Type	Ingress Protection	Note	Features	Mounting Type	Fastening Type	Number of Positions	Orientation	Shell Material	Material Flammability Rating	Shell Size - Insert	Housing Color	Contact Type	Shielding	Includes
Amphenol Tuchel Industrial C016 10I014 003 2	For Male Pins	1.5 mm 1.6 mm	125 °C	-40 °C	Circular	Plug Housing	IP65 - Dust Tight Water Resistant	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Bayonet Lock	15	N	Polyamide (PA66) Nylon 6/6	UL94 V-0	2	Black	Crimp	Unshielded	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 (14 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
