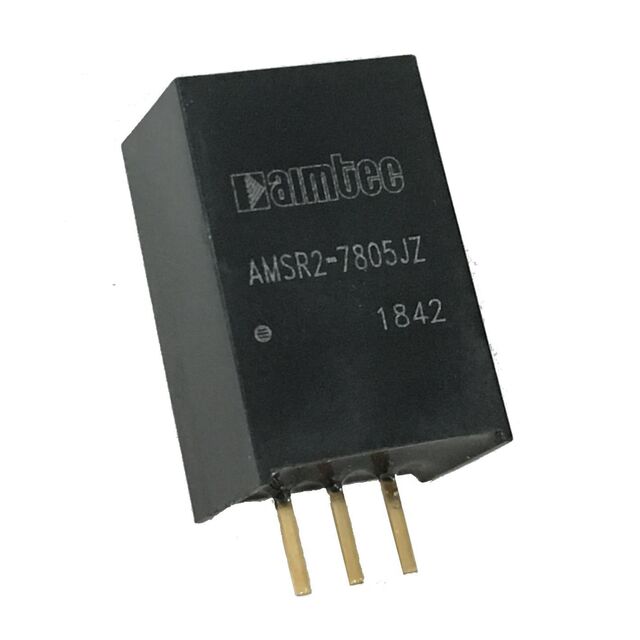

AMSR2-7805JZ

Obsolete

aimtec

DC DC CONVERTER 5V 10W

Search across all available documentation for this part.

Obsolete

aimtec

DC DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Supplier Device Package	Package / Case
aimtec AMSR2-7805JZ	8 V	ITE (Commercial)	1	5 V	Through Hole	2 A	36 V	0.69 "	0.45 in	0.35 "	11.5 mm	9 mm	17.5 mm	Non-Isolated PoL Module	87 %	85 °C	-40 °C	10 W	3-SIP	3-SIP Module
aimtec AMSR2-7815JZ	18 V	ITE (Commercial)	1	15 V	Through Hole	2 A	36 V	0.69 "	0.45 in	0.35 "	11.5 mm	8.9 mm	17.5 mm	Non-Isolated PoL Module	93 %	85 °C	-40 °C	30 W		3-SIP Module
aimtec AMSR2-783.3JZ	6 V	ITE (Commercial)	1	3.3 V	Through Hole	2 A	36 V	0.69 "	0.45 in	0.35 "	11.5 mm	8.9 mm	17.5 mm	Non-Isolated PoL Module	83 %	85 °C	-40 °C	6.6 W		3-SIP Module
aimtec AMSR2-7812JZ	16 V	ITE (Commercial)	1	12 V	Through Hole	2 A	36 V	0.69 "	0.45 in	0.35 "	11.5 mm	9 mm	17.5 mm	Non-Isolated PoL Module	92 %	85 °C	-40 °C	24 W		3-SIP Module
aimtec AMSR2-7809JZ	13 V	ITE (Commercial)	1	9 V	Through Hole	2 A	36 V	0.69 "	0.45 in	0.35 "	11.5 mm	8.9 mm	17.5 mm	Non-Isolated PoL Module	90 %	85 °C	-40 °C	18 W		3-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.45

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 5V 2A 8V - 36V Input
