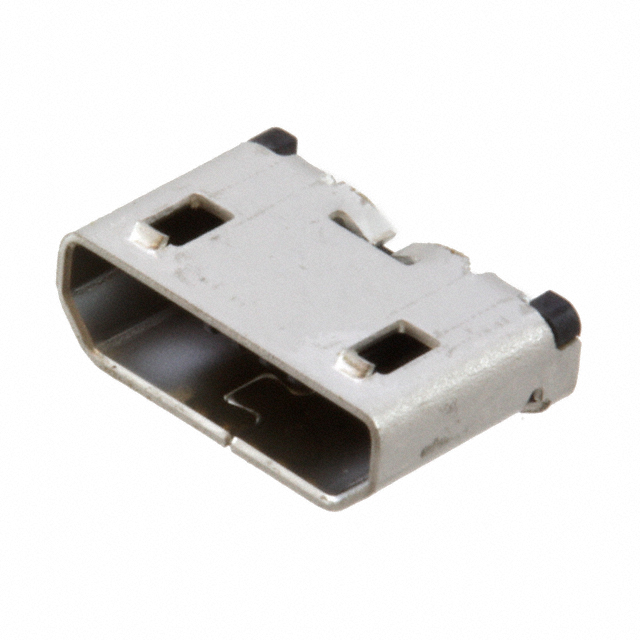

DX4R005HJ5R2000

Active

JAE Electronics

CONN RCPT USB2.0 MICRO B SMD R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT USB2.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	DX4R005HJ5R2000

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.5 A
Features	Pick and Place, Solder Retention
Gender	Receptacle
Insulation Color	Black
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Shielding	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Specifications	Shell/Shielding Material	Connector Type	Features	Gender	Mounting Type	Number of Ports	Termination	Voltage - Rated	Contact Finish	Number of Contacts	Mating Cycles	Current Rating (Amps)
JAE Electronics DX4R005HJ5R2000	Unshielded	Black	-30 ░C	80 C	Horizontal	USB 2.0	Stainless Steel	USB - micro B	Pick and Place Solder Retention	Receptacle	Surface Mount Right Angle	1	Solder	30 V	Gold	5	10000	0.5 A 1.8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
