TEN 60-1222N

Active

Traco Power

DC DC CONVERTER +/-12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

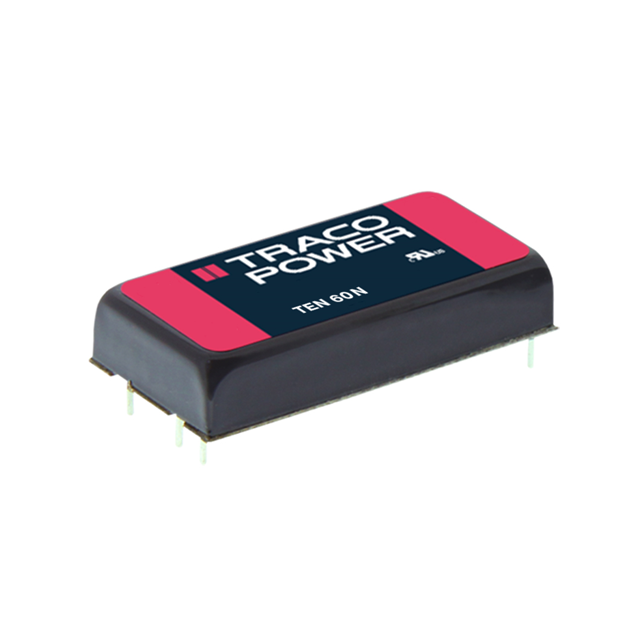

TEN 60-1222N

Active

Traco Power

DC DC CONVERTER +/-12V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 60-1222N

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2.5 A
Current - Output (Max) [Max]	2.5 A
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	60 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TEN 60 Series

Part	Efficiency	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Supplier Device Package	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Type	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TEN 60-1222N	90 %	-12 V	85 °C	-40 °C	OCP OVP Remote On/Off SCP UVLO	18 V	2	12 V	2.5 A	2.5 A	1.5 kV	9 V	6-DIP Module	Through Hole	Module	60 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)	Isolated Module
Traco Power TEN 60-4825WIR	92 %	-24 V	85 °C	-40 °C	Adjustable Output Remote On/Off	75 V	2	24 V			3000 V	18 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm	1.25 A
Traco Power TEN 60-2411WIN	92 %		85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP UVLO	36 V	1	5 V			1.5 kV	9 V	6-DIP Module	Through Hole	Module	60 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial)	Isolated Module				12 A
Traco Power TEN 60-2413WIR	93 %		85 °C	-40 °C	Adjustable Output Remote On/Off	36 V	1	15 V			3000 V	9 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm		4 A
Traco Power TEN 60-7225WIR	91 %	-24 V	85 °C	-40 °C	Adjustable Output Remote On/Off	160 V	2	24 V			3000 V	36 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm	1.25 A
Traco Power TEN 60-2410	89 %		85 °C	-40 °C	OCP OTP OVP Remote On/Off SCP UVLO	36 V	1	3.3 V			1.6 kV	18 V	8-DIP Module	Through Hole	Module	46 W	2 in	0.4 "	2 in	10.2 mm	50.8 mm	50.8 mm	ITE (Commercial)	Isolated Module				14 A
Traco Power TEN 60-2418WIR	92 %		85 °C	-40 °C	Adjustable Output Remote On/Off	36 V	1	48 V			3000 V	9 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm		1.25 A
Traco Power TEN 60-2425WIR	92 %	-24 V	85 °C	-40 °C	Adjustable Output Remote On/Off	36 V	2	24 V			3000 V	9 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm	1.25 A
Traco Power TEN 60-2412WIR	93 %		85 °C	-40 °C	Adjustable Output Remote On/Off	36 V	1	12 V			3000 V	9 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm		5 A
Traco Power TEN 60-7223WIR	91 %	-15 V	85 °C	-40 °C	Adjustable Output Remote On/Off	160 V	2	15 V		2 A	3000 V	36 V	8-DIP Module	Through Hole		60 W	1.6 "	1 "	2 in		50.8 mm		ITE (Commercial) Railway	Isolated Module	25.4 mm	40.7 mm		2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 115.00
		10	$ 92.83
		25	$ 90.10

Description

General part information

TEN 60 Series

Isolated Module DC DC Converter 2 Output 12V -12V 2.5A, 2.5A 9V - 18V Input
