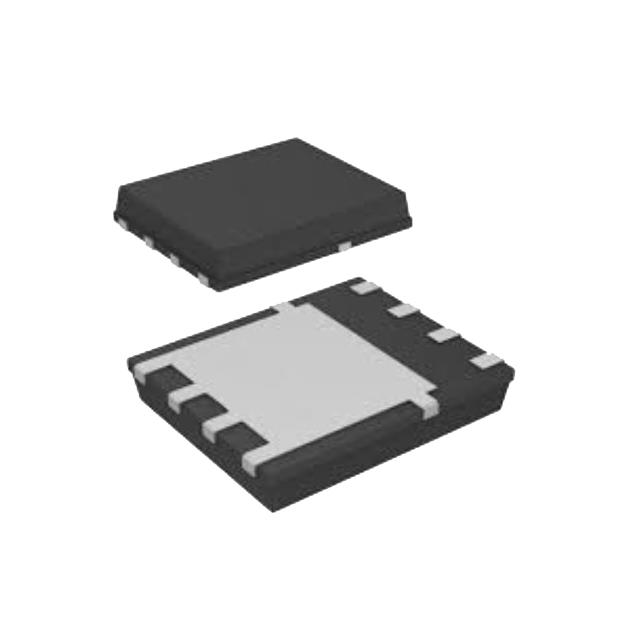

AM7326N-CT
ActiveAnalog Power Inc.
MOSFET N-CH 60V 70A DFN3X3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM7326N-CT
ActiveAnalog Power Inc.
MOSFET N-CH 60V 70A DFN3X3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM7326N-CT |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 70 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1505 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Power Dissipation (Max) | 63 W |
| Rds On (Max) @ Id, Vgs | 9.2 mOhm |
| Supplier Device Package | DFN3x3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
Description
General part information
AM7326N-CT
N-Channel 60 V 70A (Tc) 63W (Tc) Surface Mount DFN3x3
