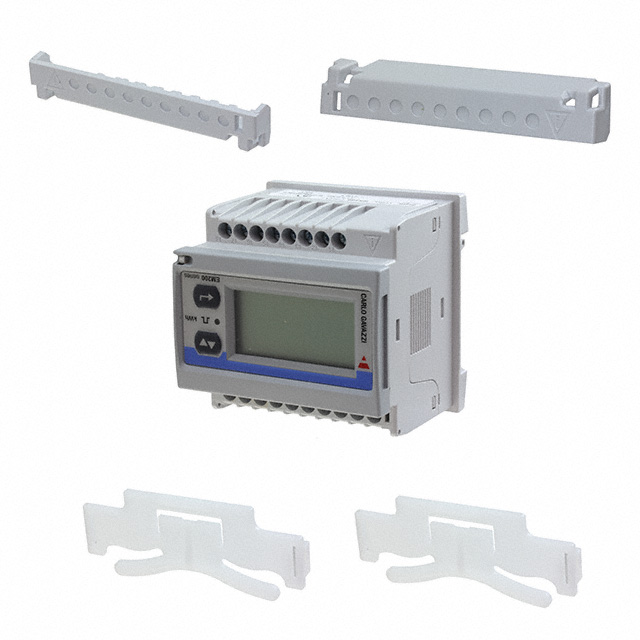

EM21072DAV53XOSX

Active

CARLO GAVAZZI

COMPACT 3PH ENERGY METER REV4

Search across all available documentation for this part.

Active

CARLO GAVAZZI

COMPACT 3PH ENERGY METER REV4

Technical Specifications

Parameters and characteristics for this part

Specification	EM21072DAV53XOSX

Display Characters - Height [z]	7 mm
Display Characters - Height [z]	0.275 in
Display Type	LCD - Black Characters, White Backlight
Ingress Protection	IP40
Measuring Range [Max]	400 VAC, 6 A, 65 Hz
Measuring Range [Min]	45 Hz, 0 VAC, 0 A
Measuring Type	Current (3-Phase), Voltage
Number of Characters Per Row	3
Number of Characters Per Row	7
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	68 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply	Loop Power

Part	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply	Measuring Range [Min]	Measuring Range [Max]	Output Type	Display Characters - Height [z]	Display Characters - Height [z]	Type	Termination Style	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
CARLO GAVAZZI EM21072DAV53XOSX	Current (3-Phase) Voltage	68 mm	68 mm	3	7	Loop Power	0 VAC 0 A 45 Hz	6 A 65 Hz 400 VAC	1.81 mOhm	7 mm	0.275 in	Energy Monitor	Screw Terminal	LCD - Black Characters White Backlight	55 °C	-25 °C	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Energy Monitor LCD - Black Characters, White Backlight Display Panel Mount
