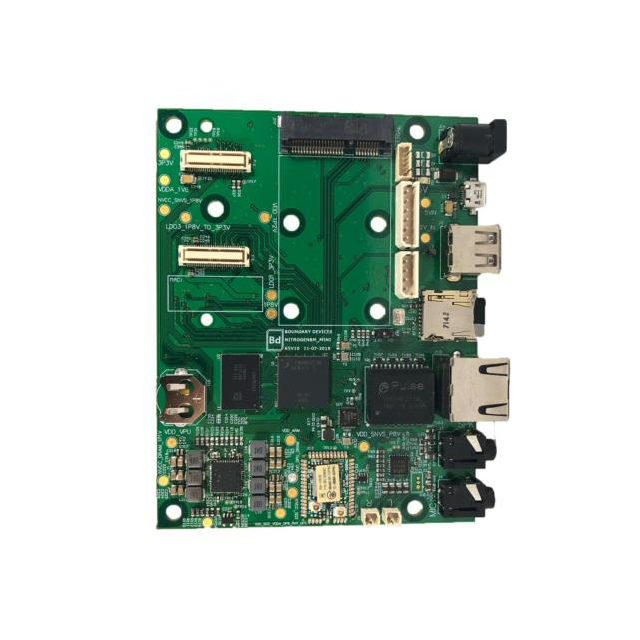

NIT8MQ_MINI_2R16EWB

Active

Ezurio LLC

SBC 2.0GHZ 4 CORE 4GB/2GB RAM

Search across all available documentation for this part.

Active

Ezurio LLC

SBC 2.0GHZ 4 CORE 4GB/2GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	NIT8MQ_MINI_2R16EWB

Core Processor	Cortex-M4F, ARM Cortex-A53
Ethernet	GbE
Ethernet	100 Mbps, 10 Mbps
Number of Cores	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1.3 W
RAM Capacity/Installed [custom]	2 GB
RAM Capacity/Installed [custom]	4 GB
Size / Dimension [x]	114.3 mm
Size / Dimension [x]	4.5 in
Size / Dimension [y]	88.9 mm
Size / Dimension [y]	3.5 in
Speed	2 GHz
Storage Interface	eMMC
USB	USB 2.0 (2)
Video Outputs	MIPI, DSI

Part	Number of Cores	USB	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Speed	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Storage Interface	Video Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Core Processor	Ethernet	Ethernet
Ezurio LLC NIT8MQ_MINI_2R16EWB	4	USB 2.0 (2)	70 °C	0 °C	1.3 W	2 GHz	2 GB	4 GB	eMMC	DSI MIPI	114.3 mm	4.5 in	88.9 mm	3.5 in	ARM Cortex-A53 Cortex-M4F	GbE	10 Mbps 100 Mbps
Ezurio LLC NIT8MQ_MINI_2R16E_BRD	4	USB 2.0 (2)	70 °C	0 °C	1.3 W	2 GHz	2 GB	4 GB	eMMC	DSI MIPI	114.3 mm	4.5 in	88.9 mm	3.5 in	ARM Cortex-A53 Cortex-M4F	GbE	10 Mbps 100 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 241.61

General part information

Single Board Computer 2GHz 4 Core 4GB/2GB RAM ARM Cortex-A53, Cortex-M4F

Technical documentation and resources

No documents available
