MI-254 (45)
ActiveAltech Corporation

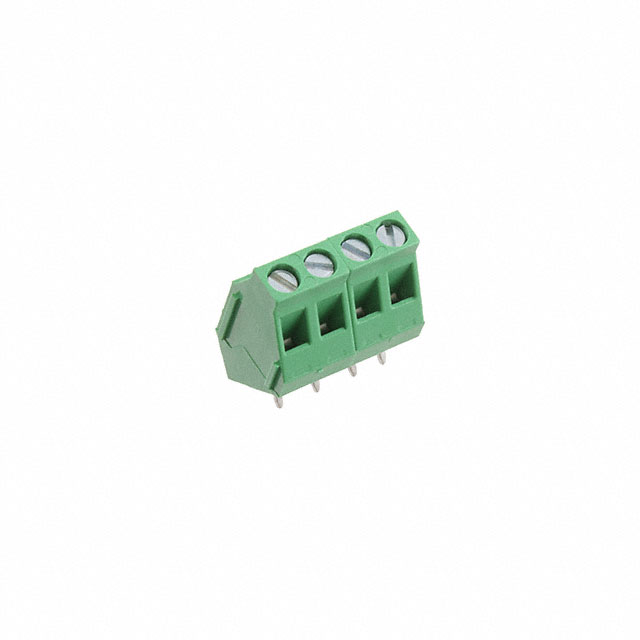

TERM BLOCK 4POS 45DEG 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MI-254 (45)
ActiveAltech Corporation
TERM BLOCK 4POS 45DEG 5.08MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MI-254 (45) |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 4 |
| Screw Material - Plating | Galvanized, Steel |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
MI-254 Series
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Positions Per Level | Contact Material - Plating [custom] | Number of Levels | Clamp Material - Plating | Pitch [x] | Pitch [x] | Screw Thread | Screw Material - Plating | Features | Torque - Screw | Torque - Screw | Housing Material | Mating Orientation | Mating Orientation | Color | Voltage | Wire Termination | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation | 14 AWG | 30 AWG | Through Hole | 4 | Brass - Tin Plated | 1 | Brass - Nickel Plated | 0.2 in | 5.08 mm | M3 | Galvanized Steel | Interlocking (Side) | 4.4 Lb-In | 0.5 Nm | Polyamide (PA) Nylon | 135 ° | 45 ° | Green | 300 V | Screw - Rising Cage Clamp | 15 A |
Altech Corporation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.10 | |
| 10 | $ 2.37 | |||
| 25 | $ 2.22 | |||
| 50 | $ 1.97 | |||
| 100 | $ 1.93 | |||
| 300 | $ 1.78 | |||
| 500 | $ 1.61 | |||
| 1000 | $ 1.42 | |||
| 5000 | $ 1.34 | |||
Description
General part information
MI-254 Series
4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
