0190670124

Active

Molex

CONN RING FLAT 4/0AWG #3/8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190670124

Active

Molex

CONN RING FLAT 4/0AWG #3/8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190670124

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	23.98 mm
Insulation Diameter [diameter]	0.944 in

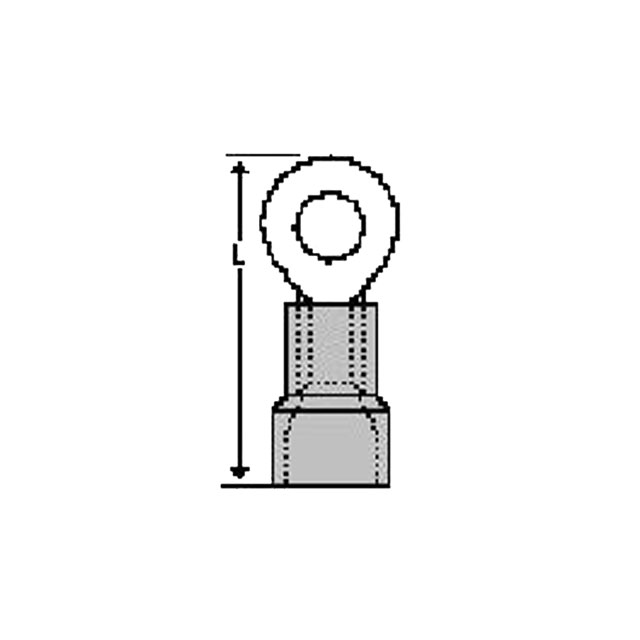

Length - Overall [x]	78.23 mm
Length - Overall [x]	3.08 "
Material - Insulation	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	2.59 mm
Thickness	0.102 in
Width - Outer Edges [x]	28.83 mm
Width - Outer Edges [x]	1.135 in
Wire Gauge	4 aught AWG

019067 Series

Part	Termination	Terminal Type	Contact Material	Color	Material - Insulation	Insulation	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Stud/Tab Size	Wire Gauge	Mounting Type	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Insulation Diameter [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]
Molex 0190670001	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	8.89 mm	0.35 in	1.39 in	35.31 mm	0.468 in	11.89 mm	Brazed Seam	0.045 in	1.14 mm	6 Stud	8 AWG	Free Hanging (In-Line)
Molex 0190670028	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	8.89 mm	0.35 in	1.811 in	46 mm			Brazed Seam	0.05 in	50 mils		8 AWG	Free Hanging (In-Line)	20.57 mm	0.81 in	1/2 Stud
Molex 0190670008	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	8.89 mm	0.35 in	1.39 in	35.31 mm	0.468 in	11.89 mm	Brazed Seam	0.045 in	1.14 mm	0.25 Stud	8 AWG	Free Hanging (In-Line)
Molex 0190670091	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	15.24 mm	0.6 in	2.303 in	58.5 mm	0.879 in		Brazed Seam	0.075 in	1.91 mm	0.25 Stud	2 AWG	Free Hanging (In-Line)		22.33 mm
Molex 0190670087	Crimp	Circular	Copper	Yellow	Nylon Polyamide (PA)	Insulated	Electro-Tin	12.95 mm	0.51 "	2.531 "	64.29 mm	0.885 in	22.48 mm	Brazed Seam	0.07 in	1.78 mm	0.625 Stud	4 AWG	Free Hanging (In-Line)
Molex 0190670093	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	15.24 mm	0.6 in	2.303 in	58.5 mm	0.879 in		Brazed Seam	0.075 in	1.91 mm	0.3125 Stud	2 AWG	Free Hanging (In-Line)		22.33 mm
Molex 0190670338	Crimp	Circular	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	8.89 mm	0.35 in	1.39 in	35.31 mm	0.468 in	11.89 mm	Brazed Seam	0.045 in	1.14 mm	0.25 Stud	8 AWG	Free Hanging (In-Line)
Molex 0190670103	Crimp	Flat Sided	Copper	Blue	Nylon Polyamide (PA)	Insulated	Electro-Tin	17.27 mm	0.68 in			0.84 in	21.34 mm	Brazed Seam	0.075 in	1.91 mm	0.25 Stud	44 AWG	Free Hanging (In-Line)
Molex 0190670121	Crimp	Flat Sided	Copper	Red	Nylon Polyamide (PA)	Insulated	Electro-Tin	22.1 mm	0.87 in	3.008 in	76.4 mm	1.067 in	27.1 mm	Brazed Seam	0.091 in	2.31 mm			Free Hanging (In-Line)			7/16 Stud
Molex 0190670124	Crimp	Circular	Copper	Blue	Polyamide (PA66) Nylon 6/6	Insulated	Electro-Tin	0.944 in		3.08 "	78.23 mm				0.102 in	2.59 mm		4 aught AWG	Free Hanging (In-Line)			3/8 Stud	23.98 mm	28.83 mm	1.135 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.82
		10	$ 6.85
		100	$ 5.54
		1000	$ 4.56

Description

General part information

019067 Series

Ring Terminal Connector 3/8 Stud Circular 4/0 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
