ABS1413403

Obsolete

Panasonic Electric Works

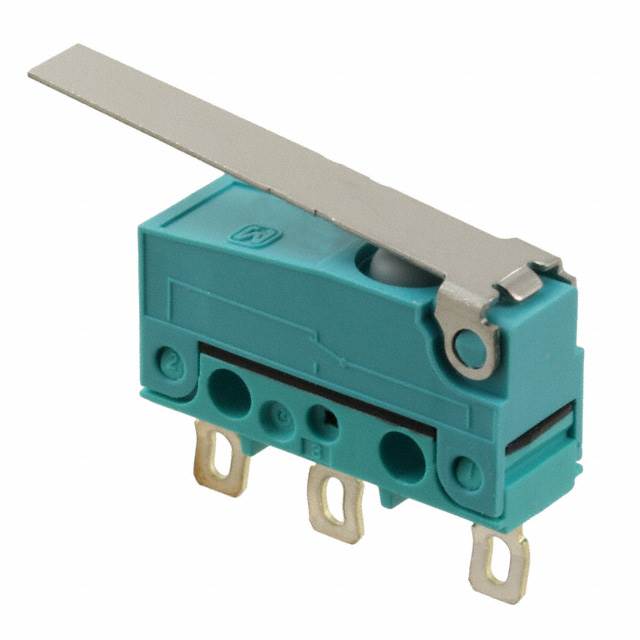

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABS1413403

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABS1413403

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	2 A
Differential Travel	1 mm
Differential Travel	0.04 in
Electrical Life	50000 Cycles
Ingress Protection	IP50
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Position	8.8 mm
Operating Position	0.345 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	1.6 mm
Overtravel	0.062 in
Pretravel	0.138 in
Pretravel	3.5 mm
Release Force	2.5 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABS141 Series

Part	Release Force	Differential Travel	Differential Travel	Pretravel	Pretravel	Voltage Rating - AC	Overtravel	Overtravel	Termination Style	Operating Force	Electrical Life	Mounting Type	Operating Position	Operating Position	Actuator Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Circuit	Mechanical Life	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1412403	3.059 gf	0.8 mm	0.031 "	0.11 in	2.8 mm	125 V	1.2 mm	0.047 "	Solder Lug	35 gf	50000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	2 A	SPDT	5000000 Cycles
Panasonic Electric Works ABS1411503	4.079 gf	0.5 mm	0.02 in	0.1 in	2.5 mm	125 V	0.81 mm	0.032 in	Solder Lug	60 gf	50000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	2 A	SPDT	5000000 Cycles
Panasonic Electric Works ABS1413403	2.5 gf	1 mm	0.04 in	0.138 in	3.5 mm	125 V	1.6 mm	0.062 in	Solder Lug		50000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	2 A	SPDT	5000000 Cycles
Panasonic Electric Works ABS1416449	3.5 gf	0.5 mm	0.02 in	0.1 in	2.5 mm		0.81 mm	0.032 in	Solder Lug	40 gf	200000 Cycles	Chassis Mount			Lever Roller	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles	0.571 in	14.5 mm
Panasonic Electric Works ABS1410419	15 gf	0.1 mm	0.004 in	0.024 in	0.6 mm	125 V	0.4 mm	0.015 "	Solder Lug	100 gf	200000 Cycles	Chassis Mount	8.4 mm	0.33 in	Round (Pin Plunger)	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles
Panasonic Electric Works ABS1411549	4.079 gf	0.5 mm	0.02 in	0.1 in	2.5 mm		0.81 mm	0.032 in	Solder Lug	60 gf	200000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles
Panasonic Electric Works ABS1410449	15 gf	0.1 mm	0.004 in	0.024 in	0.6 mm		0.4 mm	0.015 "	Solder Lug	100 gf	200000 Cycles	Chassis Mount	8.4 mm	0.33 in	Round (Pin Plunger)	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles
Panasonic Electric Works ABS1416413	3.5 gf	0.5 mm	0.02 in	0.1 in	2.5 mm	125 V	0.81 mm	0.032 in	Solder Lug	40 gf	200000 Cycles	Chassis Mount			Lever Roller	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles	0.571 in	14.5 mm
Panasonic Electric Works ABS1412513	3.5 gf	0.8 mm	0.031 "	0.11 in	2.8 mm	125 V	1.2 mm	0.047 "	Solder Lug	55 gf	200000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	100 mA	SPDT	5000000 Cycles
Panasonic Electric Works ABS1412509	3.5 gf	0.8 mm	0.031 "	0.11 in	2.8 mm	125 V	1.2 mm	0.047 "	Solder Lug	55 gf	50000 Cycles	Chassis Mount	8.8 mm	0.345 in	Lever Straight	IP50	85 °C	-40 °C	30 V	On-Mom	2 A	SPDT	5000000 Cycles
