RFAA292J292P

Active

BULGIN LIMITED

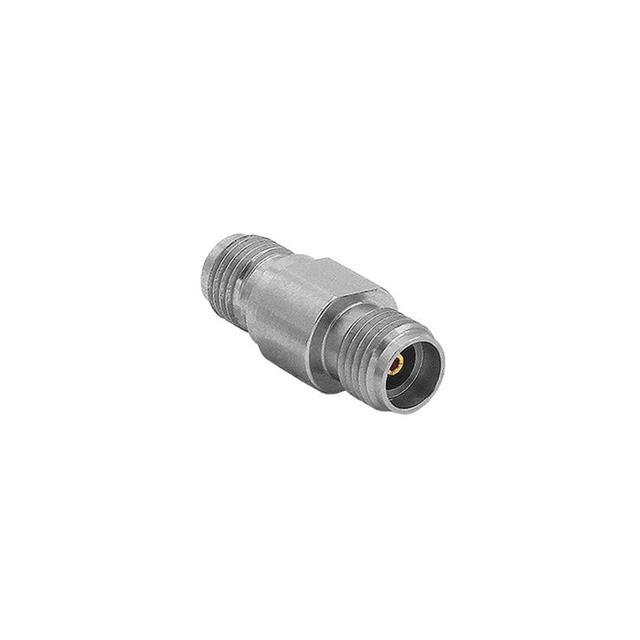

RF / COAXIAL ADAPTER, 2.92MM COAXIAL, JACK, 2.92MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFAA292J292P

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 2.92MM COAXIAL, JACK, 2.92MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA292J292P

Adapter Series [Max]	2.92 mm
Adapter Series [Min]	2.92 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Conversion Type	Same Series
Convert From (Adapter End)	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

RFAA292 Series

Part	Frequency - Max [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Mating Cycles	Adapter Type	Dielectric Material	Body Material	Adapter Series [Max]	Adapter Series [Min]	Center Contact Material	Impedance	Mounting Type	Convert To (Adapter End)	Conversion Type	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Style	Convert To (Adapter End)
BULGIN LIMITED RFAA292J350J	40 GHz	2.92 mm	Jack Female Socket OS-2.9	500	Jack to Jack	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	3.5 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)	3.5mm Jack Female Socket	Between Series	Female to Female	85 °C	-40 °C	Straight
BULGIN LIMITED RFAA292J292P	40 GHz	2.92 mm	Jack Female Socket OS-2.9	500	Plug to Jack	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	2.92 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)	2.92mm (OS-2.9) Plug Male Pin	Same Series		85 °C	-40 °C	Straight
BULGIN LIMITED RFAA292J350P	40 GHz	2.92 mm	Jack Female Socket OS-2.9	500	Plug to Jack	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	3.5 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)		Between Series		85 °C	-40 °C	Straight
BULGIN LIMITED RFAA292J292J	40 GHz	2.92 mm	Jack Female Socket OS-2.9	500	Jack to Jack	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	2.92 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)	OS-2.9 Jack Female Socket	Same Series	Female to Female	85 °C	-40 °C	Straight	2.92 mm
BULGIN LIMITED RFAA292P292P	40 GHz	2.92 mm		500	Plug to Plug	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	2.92 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)	2.92mm (OS-2.9) Plug Male Pin	Same Series	Male to Male	85 °C	-40 °C	Straight
BULGIN LIMITED RFAA292P350P	40 GHz	2.92 mm		500	Plug to Plug	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Stainless Steel	3.5 mm	2.92 mm	Beryllium Copper	50 Ohms	Free Hanging (In-Line)		Between Series	Male to Male	85 °C	-40 °C	Straight

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 141.36
Newark	Each	1	$ 222.39
		100	$ 217.92
		200	$ 213.58

Description

General part information

RFAA292 Series

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
