M83513/25-F01NP
ActiveCinch Connectivity Solutions Trompeter

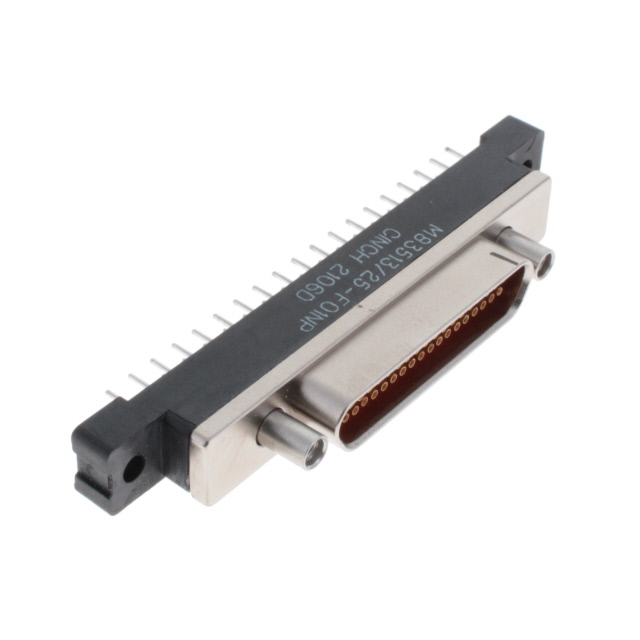

CONN MICRO-D RCPT 37P VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/25-F01NP |
|---|---|
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Shell Size, Connector Layout [custom] | 0.05 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 201.68 | |
| 1 | $ 212.52 | |||
| 10 | $ 196.94 | |||
| 10 | $ 157.81 | |||
| 25 | $ 143.96 | |||
| 25 | $ 189.85 | |||
| 50 | $ 134.63 | |||
| 50 | $ 188.44 | |||
| Bulk | 1 | $ 1272.05 | ||
Description
General part information
M83513/25 Series
37 Position D-Type, Micro-D Receptacle, Female Sockets Connector
