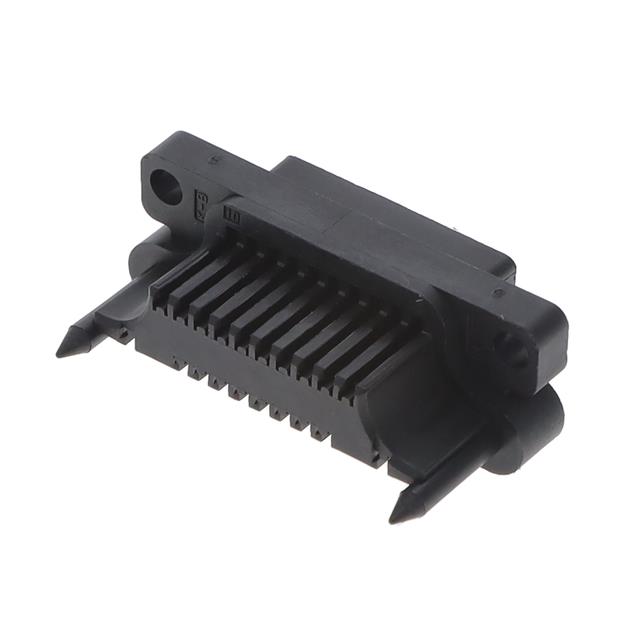

TSDP-20V-K

Active

JST Sales America Inc.

CONN PLUG HSG 20POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN PLUG HSG 20POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	TSDP-20V-K

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Number of Rows	Note	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Material
JST Sales America Inc. TSDP-20V-K	Male Pin	Crimp	0.079 in	2 mm	2	Contacts Not Included	Free Hanging (In-Line)	Plug	-25 °C	85 °C	20	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 0.78

General part information

20 Rectangular Connectors - Housings Plug 0.079" (2.00mm)
