PPPC371LGBN-RC

Active

Sullins Connector Solutions

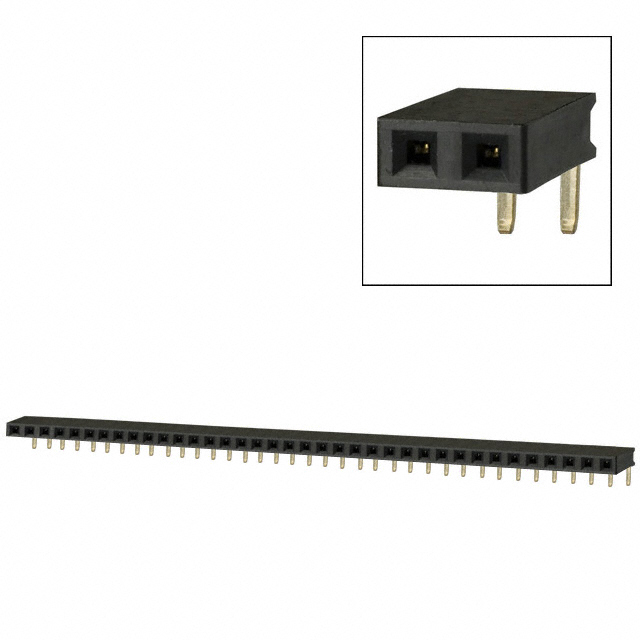

CONN HDR 37POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 37POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC371LGBN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Insulation Material	Connector Type	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows
Sullins Connector Solutions PPPC371LGBN-RC	Solder	Phosphor Bronze	3 A	Flash	Square	Gold	37	0.1 in	2.54 mm	Flash	250 VDC	3.15 mm	0.124 "	Black	0.1 in	2.54 mm	UL94 V-0	All	Push-Pull	Polyester	Header	Through Hole Right Angle	Female Socket	-40 °C	105 ░C	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.31

General part information

37 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
