OA2543AP-11-1TB1869K

Active

Orion Fans

AC FAN, IP69K, 254X254X89MM, 115

Deep-Dive with AI

Search across all available documentation for this part.

OA2543AP-11-1TB1869K

Active

Orion Fans

AC FAN, IP69K, 254X254X89MM, 115

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA2543AP-11-1TB1869K

Air Flow	930 CFM
Air Flow	26.04 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP69K
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	67 dB
Power (Watts)	105 W
RPM	3300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	1.1 in H2O
Static Pressure	274 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	5.2 lbs
Weight	2.4 kg
Width [y]	89 mm

OA2543AP Series

Part	Termination	Static Pressure	Static Pressure	Bearing Type	Ingress Protection	Features	Material - Blade	Noise	Air Flow	Air Flow	Width [y]	Fan Type	Power (Watts)	Approval Agency	Voltage - Rated	RPM	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension	Material - Frame	Weight	Weight
Orion Fans OA2543AP-11-1TB1869K	2 Terminals	1.1 in H2O	274 Pa	Ball	IP69K	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	115 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-22-1WB1868	2 Wire Leads	1.1 in H2O	274 Pa	Ball	IP68 - Dust Tight Waterproof	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	230 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-11-1WB1868	2 Wire Leads	1.1 in H2O	274 Pa	Ball	IP68 - Dust Tight Waterproof	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	115 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-11-1TB1868	2 Terminals	1.1 in H2O	274 Pa	Ball	IP68 - Dust Tight Waterproof	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	115 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-22-1WB1869K	2 Wire Leads	1.1 in H2O	274 Pa	Ball	IP69K	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	230 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-22-1TB1869K	2 Terminals	1.1 in H2O	274 Pa	Ball	IP69K	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	230 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-22-1TB1868	2 Terminals	1.1 in H2O	274 Pa	Ball	IP68 - Dust Tight Waterproof	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	230 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg
Orion Fans OA2543AP-11-1WB1869K	2 Wire Leads	1.1 in H2O	274 Pa	Ball	IP69K	Capacitor Thermal Overload Protector (TOP)	Steel	67 dB	930 CFM	26.04 m³/min	89 mm	Tubeaxial	105 W	CE cURus TUV UR	115 VAC	3300 RPM	50000 Hrs	10 in	Round	Aluminum	5.2 lbs	2.4 kg

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 175.24
		10	$ 161.41
		25	$ 151.03
		50	$ 148.73

Description

General part information

OA2543AP Series

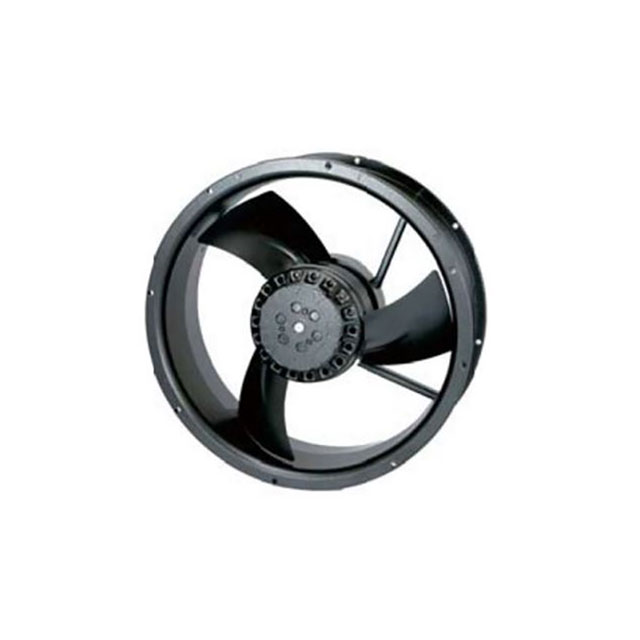

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 930.0 CFM (26.04m³/min) 2 Terminals

Documents

Technical documentation and resources

No documents available
