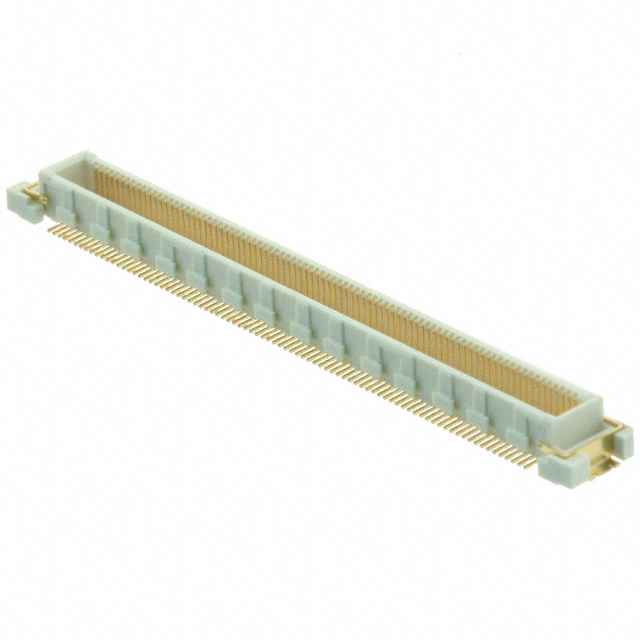

FX10B-168P-SV4(85)

Active

Hirose Electric USA, Inc.

CONN HDR 168POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX10B-168P-SV4(85)

Active

Hirose Electric USA, Inc.

CONN HDR 168POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX10B-168P-SV4(85)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Solder Retention
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	168
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX10B Series

Part	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Connector Type	Contact Finish	Number of Rows	Features	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]
Hirose Electric USA, Inc. FX10B-80S/8-SV(21)	Surface Mount	0.5 mm	0.02 in	80	4 Áin	0.1 Ám	3.2 mm	0.126 in	4 mm 5 mm	Center Strip Contacts Receptacle	Gold	2	Ground Plate Solder Retention
Hirose Electric USA, Inc. FX10B-144S-SV(21)	Surface Mount	0.5 mm	0.02 in	144	4 Áin	0.1 Ám	3.2 mm	0.126 in	4 mm 5 mm	Center Strip Contacts Receptacle	Gold	2	Solder Retention
Hirose Electric USA, Inc. FX10B-120S/12-SV(71)	Surface Mount	0.5 mm	0.02 in	120	4 Áin	0.1 Ám	3.2 mm	0.126 in	4 mm 5 mm	Center Strip Contacts Receptacle	Gold	2	Ground Plate Solder Retention
Hirose Electric USA, Inc. FX10B-168P-SV4(93)	Surface Mount	0.5 mm	0.02 in	168	30 Áin	0.76 Ám	7.24 mm	0.285 in	8 mm	Header Outer Shroud Contacts	Gold	2	Solder Retention
Hirose Electric USA, Inc. FX10B-80P/8-SV	Surface Mount	0.5 mm	0.02 in	80	4 Áin	0.1 Ám			4 mm	Header Outer Shroud Contacts	Gold	2	Ground Plate Solder Retention
Hirose Electric USA, Inc. FX10B-140S/14-SV(91)	Surface Mount	0.5 mm	0.02 in	140	4 Áin	0.1 Ám	3.2 mm	0.126 in	4 mm 5 mm	Center Strip Contacts Receptacle	Gold	2	Ground Plate Solder Retention
Hirose Electric USA, Inc. FX10B-168P-SV4(85)	Surface Mount	0.5 mm	0.02 in	168	30 Áin	0.76 Ám	7.24 mm	0.285 in	8 mm	Header Outer Shroud Contacts	Gold	2	Solder Retention
Hirose Electric USA, Inc. FX10B-100P/10-SV1(21)	Surface Mount	0.5 mm	0.02 in	100	4 Áin	0.1 Ám			5 mm	Header Outer Shroud Contacts	Gold	2	Ground Plate Solder Retention	0.177 in	4.5 mm
Hirose Electric USA, Inc. FX10B-120P/12-SV(92)	Surface Mount	0.5 mm	0.02 in		3.94 µin	0.1 Ám			4 mm	Header Outer Shroud Contacts	Gold	2	Ground Plate Solder Retention			120	12
Hirose Electric USA, Inc. FX10B-140S/14-SV	Surface Mount	0.5 mm	0.02 in	140	4 Áin	0.1 Ám	3.2 mm	0.126 in	4 mm 5 mm	Center Strip Contacts Receptacle	Gold	2	Ground Plate Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 26.82
	Digi-Reel®	1	$ 26.82
	Tape & Reel (TR)	250	$ 20.00

Description

General part information

FX10B Series

168 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
