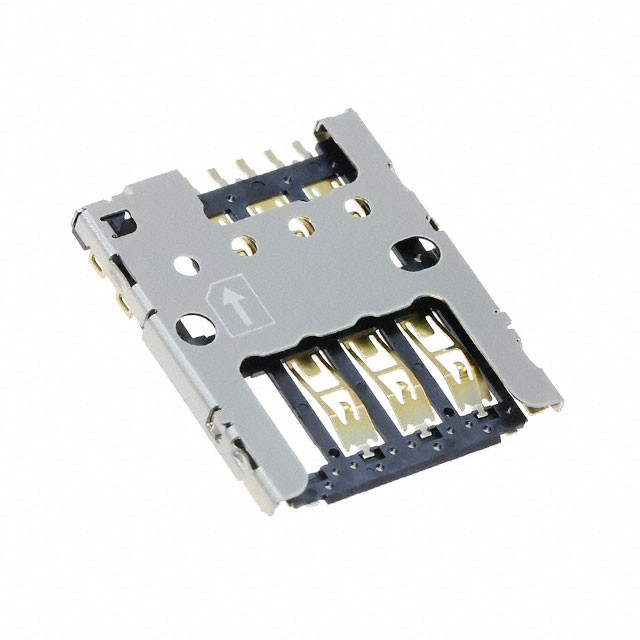

SF53S006VCBR2000
ActiveJAE Electronics
PUSH-PULL MICRO SIM CARD CONNECT
Deep-Dive with AI
Search across all available documentation for this part.
SF53S006VCBR2000
ActiveJAE Electronics
PUSH-PULL MICRO SIM CARD CONNECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF53S006VCBR2000 |
|---|---|
| Card Type | Micro SIM |
| Contact Finish | Gold |
| Height Above Board [z] | 0.057 in |
| Height Above Board [z] | 1.45 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.62 | |||
| Tape & Reel (TR) | 2000 | $ 0.58 | ||
| 4000 | $ 0.56 | |||
| 6000 | $ 0.54 | |||
| 10000 | $ 0.51 | |||
| 14000 | $ 0.50 | |||
Description
General part information
SF53S006 Series
6 Position Card Connector Micro SIM Surface Mount, Right Angle Gold
