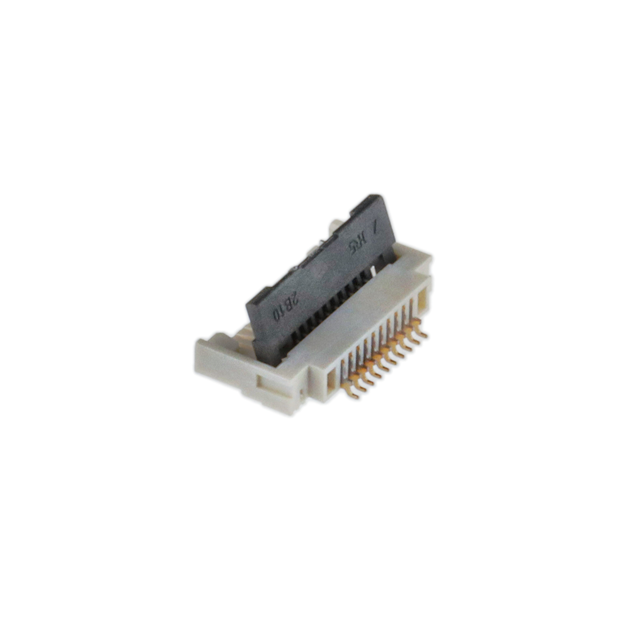

TF31-10S-0.5SH(800)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 10POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TF31 Series Datasheet

TF31-10S-0.5SH(800)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 10POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet TF31 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF31-10S-0.5SH(800)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.069 in
Height Above Board [z]	1.75 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

TF31 Series

Part	Cable End Type	Connector/Contact Type	Material Flammability Rating	Termination	Mounting Type	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Contact Finish	Locking Feature	FFC, FCB Thickness	Current Rating (Amps)	Housing Material	Number of Positions	Contact Material	Flat Flex Type	Housing Color	Actuator Color	Actuator Material	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features
Hirose Electric USA, Inc. TF31-10S-1SH(800)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	10	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-12S-0.5SH(895)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	12	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-21S-0.5SH(895)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	21	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-12S-0.5SH(800)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	12	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-14S-0.5SH(800)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	14	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	85 °C
Hirose Electric USA, Inc. TF31-50S-0.5SH(895)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	50	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-17S-0.5SH(800)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)		Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	85 °C
Hirose Electric USA, Inc. TF31-4S-0.5SH(895)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	4	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
Hirose Electric USA, Inc. TF31-20S-0.5SH(895)	Straight Tapered	Contacts Bottom	UL94 V-0	Solder	Surface Mount	0.069 in	1.75 mm	50 V			20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	20	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C	Solder Retention
Hirose Electric USA, Inc. TF31-10S-0.5SH(800)	Tabbed	Contacts Bottom	UL94 V-0	Solder	Surface Mount Right Angle	0.069 in	1.75 mm	50 V	1.25 Áin	0.03 Ám	20	Gold	Flip Lock	0.3 mm	0.5 A	Liquid Crystal Polymer (LCP)	10	Phosphor Bronze	FFC FPC	Beige	Black	Liquid Crystal Polymer (LCP)	0.02 in	0.5 mm	-40 °C	105 ░C
