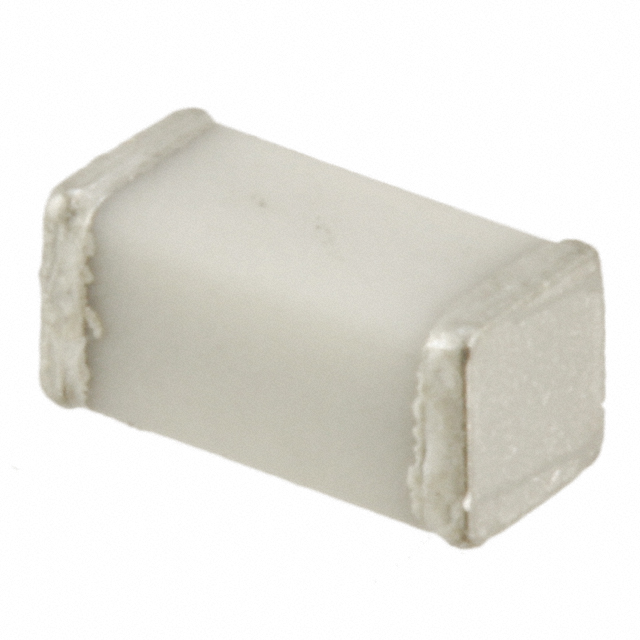

3410.0022.04
ActiveSCHURTER Inc.
FUSE BRD MT 250MA 125VAC/VDC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3410.0022.04
ActiveSCHURTER Inc.
FUSE BRD MT 250MA 125VAC/VDC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3410.0022.04 |
|---|---|
| Breaking Capacity @ Rated Voltage | 300 A, 50 A |
| Current Rating (Amps) | 0.25 A |
| DC Cold Resistance | 0.8 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.0009 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.55 mm |
| Size / Dimension [y] | 0.061 in |
| Size / Dimension [z] | 1.55 mm |
| Size / Dimension [z] | 0.061 " |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.94 | |
| 5 | $ 4.11 | |||
| 10 | $ 3.80 | |||
| 50 | $ 3.17 | |||
| 100 | $ 2.92 | |||
| 250 | $ 2.63 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.24 | |||
| Digi-Reel® | 1 | $ 4.94 | ||
| 5 | $ 4.11 | |||
| 10 | $ 3.80 | |||
| 50 | $ 3.17 | |||
| 100 | $ 2.92 | |||
| 250 | $ 2.63 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.24 | |||
| Tape & Reel (TR) | 10000 | $ 2.02 | ||
Description
General part information
3410.0022 Series
250 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
