2701693

Obsolete

Phoenix Contact

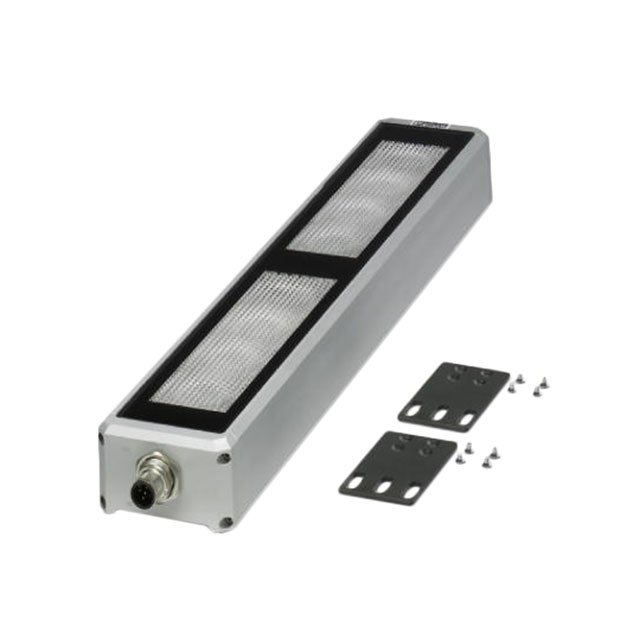

LED MOD COOL WHT RECT 5000K

Search across all available documentation for this part.

Obsolete

Phoenix Contact

LED MOD COOL WHT RECT 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	2701693

CCT (K)	5000 K
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Test	750 mA
Features	With Connector
Height [z]	35 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	18 lm/W
Luminous Flux @ Current/Temperature	930 lm
Size / Dimension [x]	365 mm
Size / Dimension [y]	60 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	24 V

Part	Height [z]	Type	Size / Dimension [x]	Size / Dimension [y]	Configuration	CCT (K)	Features	Color	Lens Type	Luminous Flux @ Current/Temperature	Current - Test	CRI (Color Rendering Index)	Temperature - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test
Phoenix Contact 2701693	35 mm	LED Module	365 mm	60 mm	Rectangle	5000 K	With Connector	Cool White	Flat	930 lm	750 mA	80	55 °C	100 °	24 V	18 lm/W
Phoenix Contact 2701691	35 mm	LED Module	695 mm	60 mm	Rectangle	5000 K	With Connector	Cool White	Flat	1410 lm	920 mA	80	55 °C	50 °	24 V	64 lm/W
Phoenix Contact 2701690	35 mm	LED Module	365 mm	60 mm	Rectangle	5000 K	With Connector	Cool White	Flat	450 lm	460 mA	80	55 °C	50 °	24 V	41 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle
