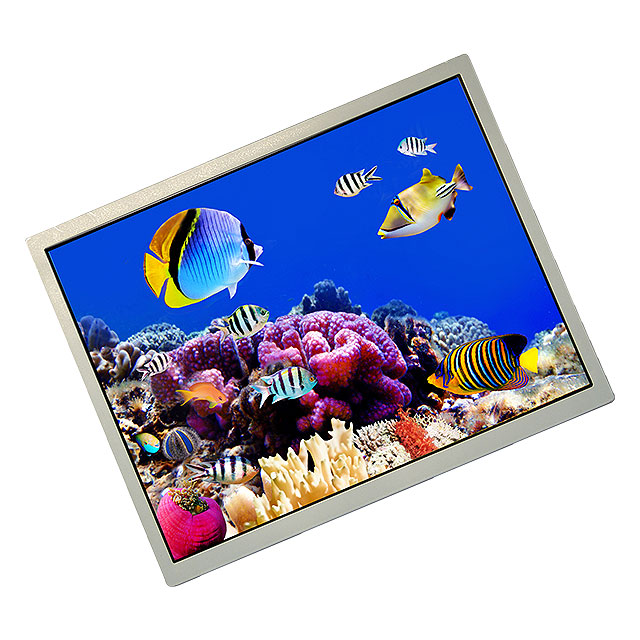

TCG104XGLPAPNN-AN40

Active

Kyocera International, Inc.

LCD MOD TFT 10.4" XGA TRANSMISS

Deep-Dive with AI

Search across all available documentation for this part.

TCG104XGLPAPNN-AN40

Active

Kyocera International, Inc.

LCD MOD TFT 10.4" XGA TRANSMISS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCG104XGLPAPNN-AN40

Backlight	LED - White
Diagonal Screen Size	10.4 in
Diagonal Screen Size	264.16 mm
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.07 mm
Dot Pitch [y]	0.21 mm
Dot Pixels [x]	1024
Dot Pixels [y]	768
Graphics Color	Green, Red, Blue
Interface	LVDS
Viewing Area [x]	210.43 mm
Viewing Area [y]	157.82 mm

TCG104 Series

Part	Viewing Area [y]	Viewing Area [z]	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Backlight	Display Type	Dot Pitch [x]	Dot Pitch [y]	Interface	Viewing Area [x]	Dot Pixels [x]	Dot Pixels [y]
Kyocera International, Inc. TCG104SVLQAPNN-AN20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED - White	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104XGLPAPNN-AN40	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue Green Red	LED - White	TFT - Color	0.07 mm	0.21 mm	LVDS	210.43 mm	1024	768
Kyocera International, Inc. TCG104SVLQAPFA-AA20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104VGLABANN-AN30	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED - White	TFT - Color	0.11 mm	0.33 mm			640	480
Kyocera International, Inc. TCG104XGLPAPNN-AN30	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue Green Red	LED - White	TFT - Color	0.07 mm	0.21 mm	LVDS	210.43 mm	1024	768
Kyocera International, Inc. TCG104XGLPAPNN-AN31	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue Green Red	LED	TFT - Color			LVDS	210.43 mm	1024	768
Kyocera International, Inc. TCG104VGLPEANN-AN60	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED	TFT - Color	0.11 mm	0.33 mm	LVDS		640	480
Kyocera International, Inc. TCG104VGLABANN-AN50	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED - White	TFT - Color	0.11 mm	0.33 mm			640	480
Kyocera International, Inc. TCG104SVLPAAFA-AA20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104VGLAAAFA-AA00	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue Green Red	LED	TFT - Color	0.11 mm	0.33 mm			640	480

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 293.47
		20	$ 282.18

Description

General part information

TCG104 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 10.4" (264.16mm) 1024 x 768 (XGA)

Documents

Technical documentation and resources

No documents available
