MP2624GL-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BAT CHG IRON PHOSPHT 1C 22QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BAT CHG IRON PHOSPHT 1C 22QFN

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply (Max) [Max]	Mounting Type	Interface	Number of Cells	Operating Temperature [Min]	Operating Temperature [Max]	Battery Chemistry	Charge Current - Max [Max]	Battery Pack Voltage	Package / Case	Fault Protection	Programmable Features
MONOLITHIC POWER SYSTEMS (MPS) MP2624AGL-Z	7 V	Surface Mount	I2C	1	-40 °C	125 ¯C	Lithium Ion/Polymer	4.5 A	4.43 V	22-PowerVFQFN	Over Current Over Voltage
MONOLITHIC POWER SYSTEMS (MPS) MP2624GL-Z	7 V	Surface Mount	I2C	1			Lithium Iron Phosphate	4.5 A	4.2 V	22-PowerVFQFN	Over Current Over Voltage	Timer
MONOLITHIC POWER SYSTEMS (MPS) MP2624AGL-P	7 V	Surface Mount	I2C	1	-40 °C	125 ¯C	Lithium Ion/Polymer	4.5 A	4.43 V	22-PowerVFQFN	Over Current Over Voltage
MONOLITHIC POWER SYSTEMS (MPS) MP2624GL-P	7 V	Surface Mount	I2C	1			Lithium Iron Phosphate	4.5 A	4.2 V	22-PowerVFQFN	Over Current Over Voltage	Timer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.90

General part information

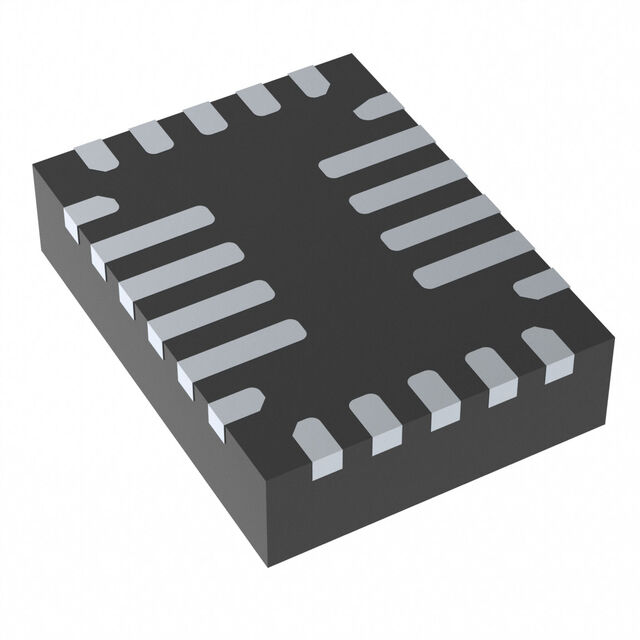

Charger IC Lithium Iron Phosphate 22-QFN (3x4)
